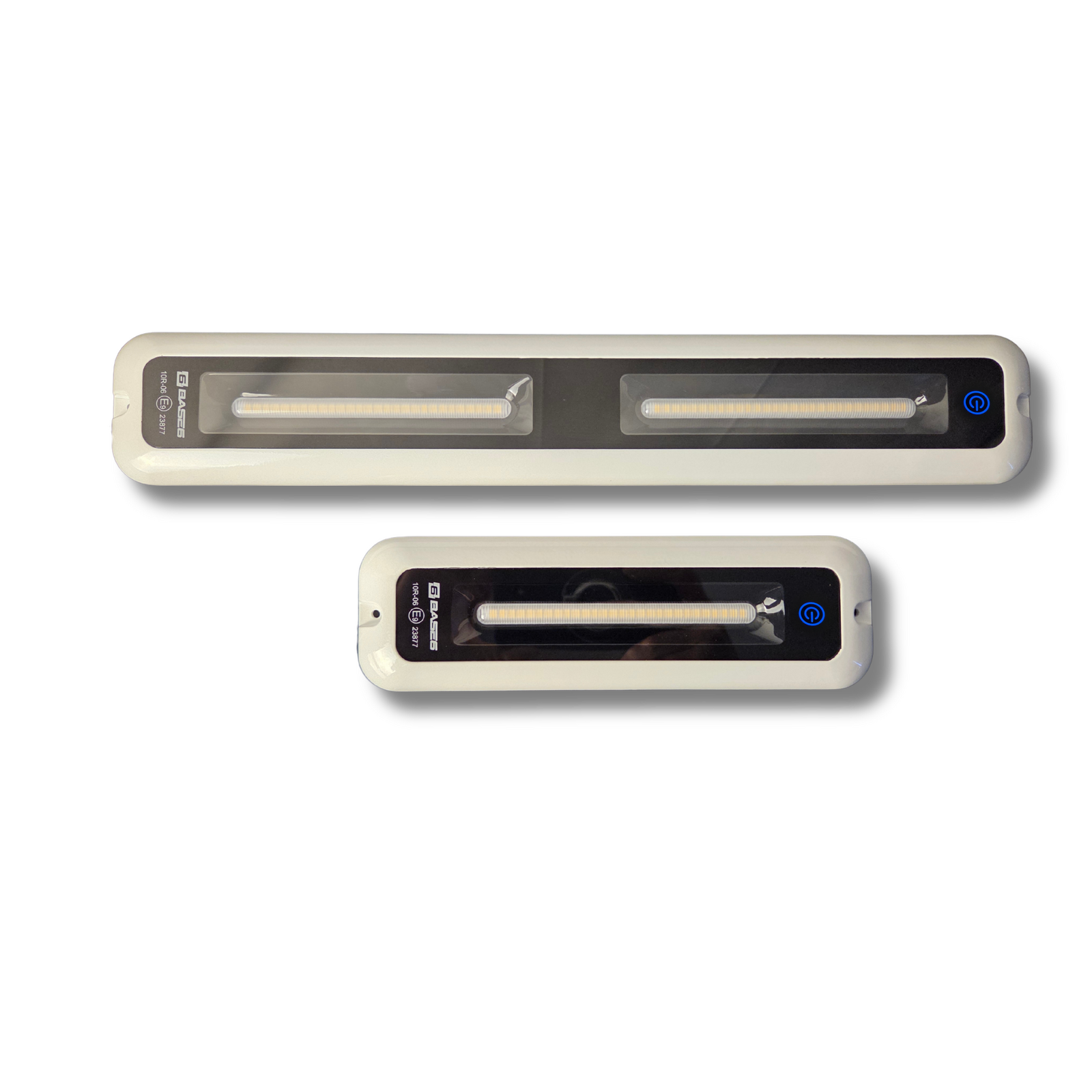

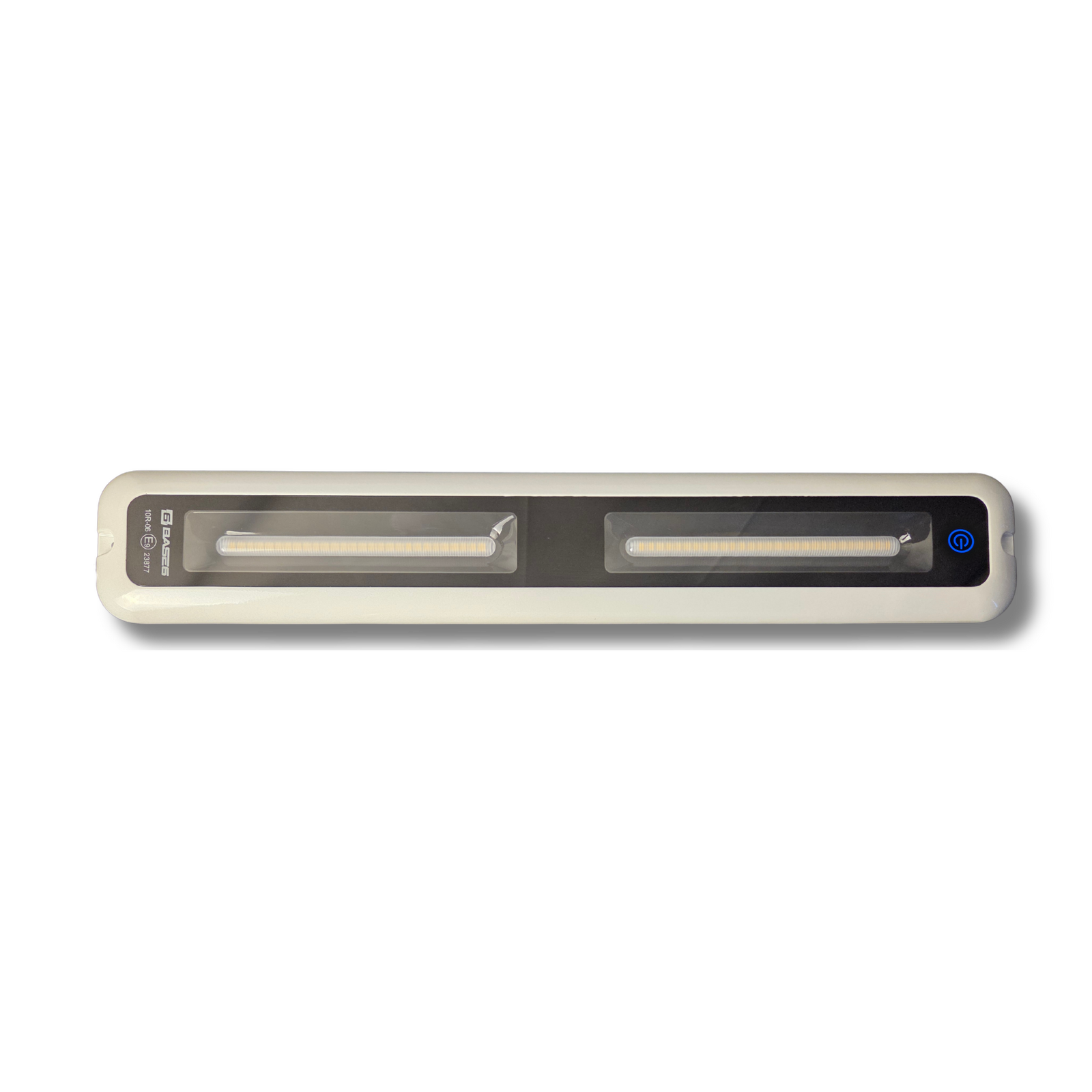

BASE6 LUX PANEL, Touch Switch, 372mm X 62mm x 13mm, 10-30V, IP67/IP69K, Cool White, Frosted Lens 3 Wire - Pos / Neg / dim, 300mm Cable length

The 372mm Lux Panel LED Interior Light is a high-output lighting solution designed for larger spaces requiring powerful, even illumination. Equipped with 52 premium Osram LEDs and a frosted lens, it delivers a bright yet diffused cool white light (5700K–6500K), ensuring excellent visibility without harsh glare.

Producing an impressive 2400 lumens, this extended panel is ideal for demanding interior lighting applications. Its rugged, fully encapsulated construction and IP67/IP69K rating provide outstanding protection against moisture, vibration, and corrosion, ensuring reliable performance in harsh environments.

Designed for convenience, this model features an integrated on/off switch, allowing simple and easy operation without the need for external switching. Operating on a wide 10–30V DC range, it combines high light output with a slim, low-profile design (372 × 62 × 12 mm) for quick and straightforward surface mounting.

Key Features

  • 52 Osram LEDs with frosted lens for wide, even light distribution

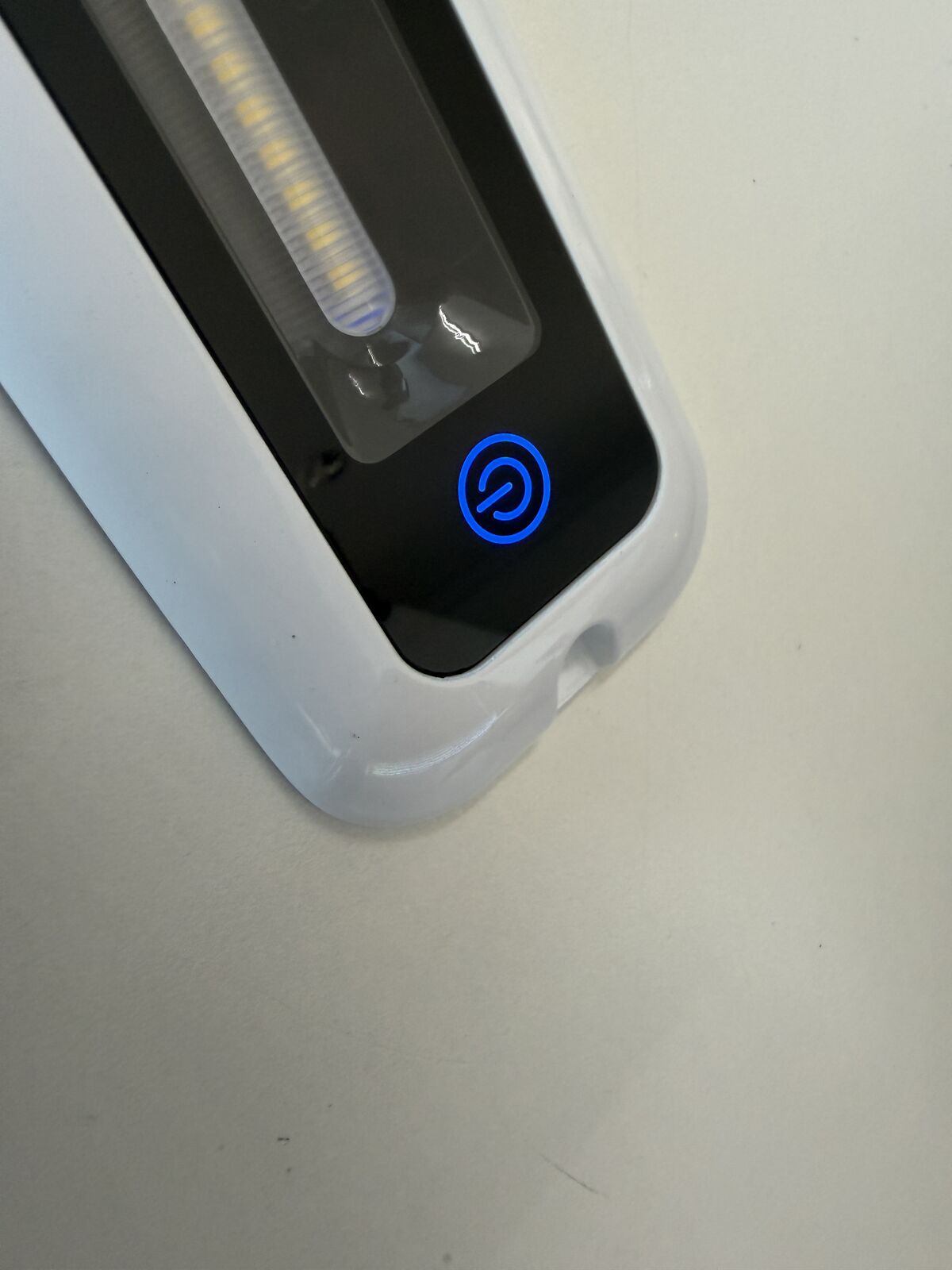

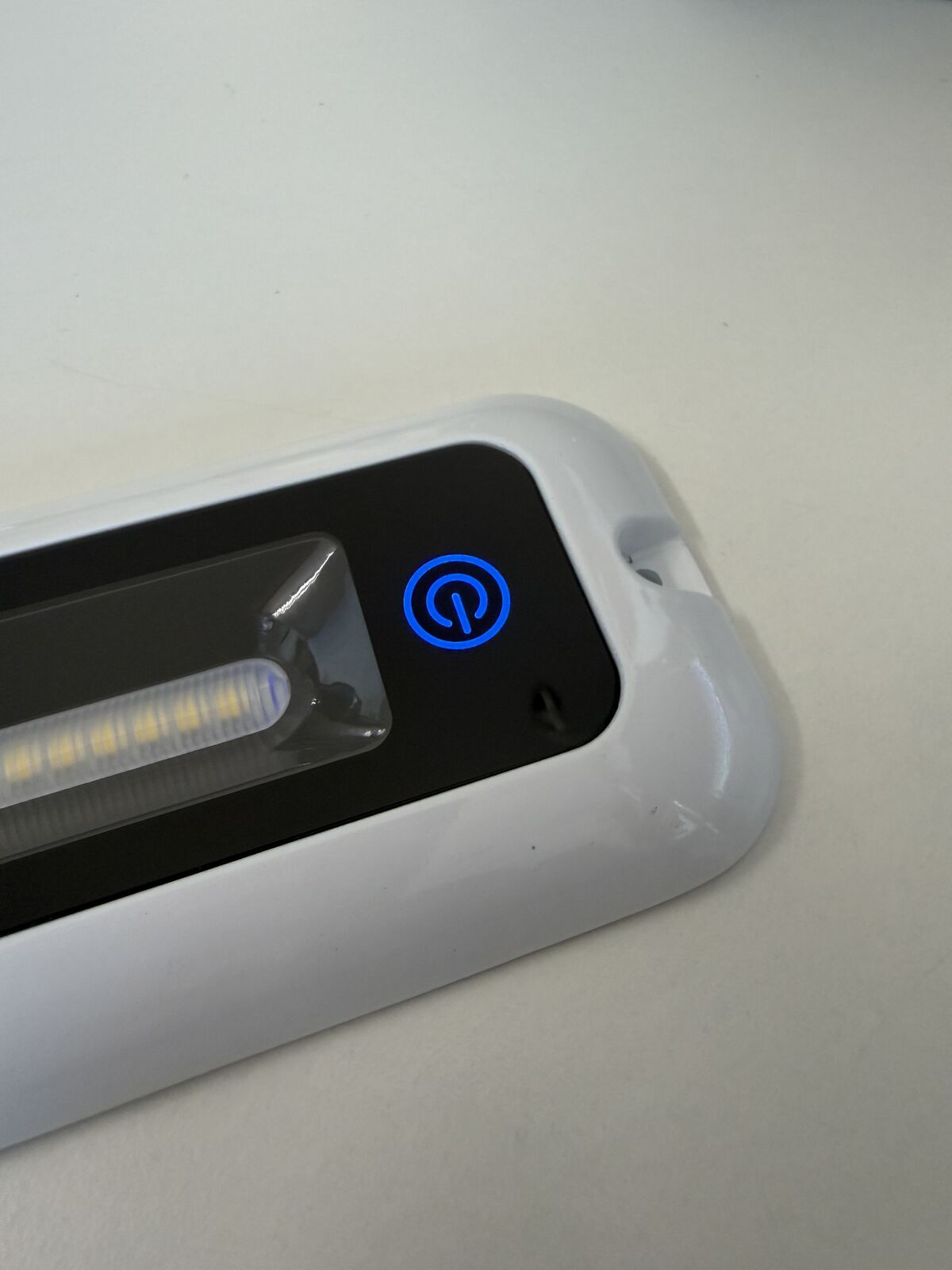

  • Integrated on/off switch
  • High output: 2400 lumens
  • Cool white light (5700K–6500K)
  • Voltage: 10–30V DC
  • Current draw: 2A @ 12V / 1A @ 24V
  • IP67/IP69K rated
  • Fully encapsulated for maximum durability
  • Operating temperature: -45°C to 65°C
  • Surface mount installation
  • Cable length: 300 mm
  • Certifications: CE, RoHS, REACH, ECE R10
  • 3-year warranty

Applications

Perfect for trucks, buses, large cabins, caravans, trailers, RVs, boats, and marine environments where higher light output is required and simple switch-controlled operation is preferred.

Also available in a 207mm version.

SKU B6LP372FW-TS
Shipping Weight 0.3000kg
Shipping Width 0.340m
Shipping Height 0.020m
Shipping Length 0.100m
Shipping Cubic 0.000680000m3
