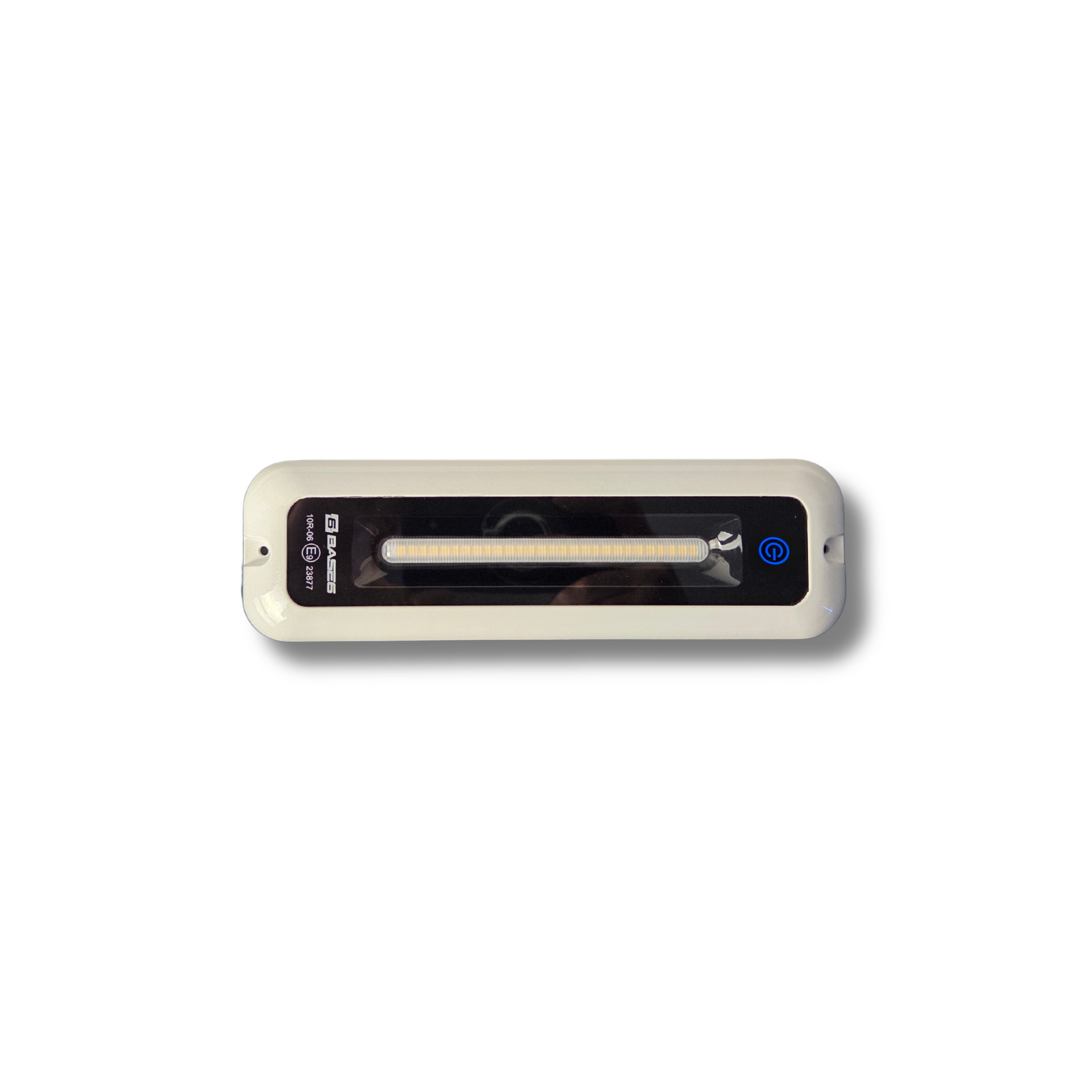

BASE6 LUX PANEL, Touch Switch 207mm X 62mm x 13mm, 10-30V, IP67/IP69K, Cool White, Frosted Lens 3 Wire - Pos / Neg / Dim, 300mm Cable

The 207mm Lux Panel LED Interior Light delivers bright, uniform illumination in a compact, low-profile design. Featuring 26 high-quality Osram LEDs and a frosted lens, it produces a smooth, glare-free cool white light (5700K–6500K), making it ideal for a wide range of vehicle and marine interior applications.

With an output of 1200 lumens, this light provides excellent visibility while maintaining energy efficiency. The fully encapsulated construction and IP67/IP69K rating ensure outstanding resistance to moisture, vibration, and corrosion, delivering reliable performance even in demanding environments.

Designed for convenience, this model features an integrated on/off switch, allowing easy operation without the need for external switching. Operating on 10–30V DC systems, its slim profile (207 × 62 × 13 mm) and surface-mount design make installation quick and straightforward.

Key Features

• 26 Osram LEDs with frosted lens for soft, even light

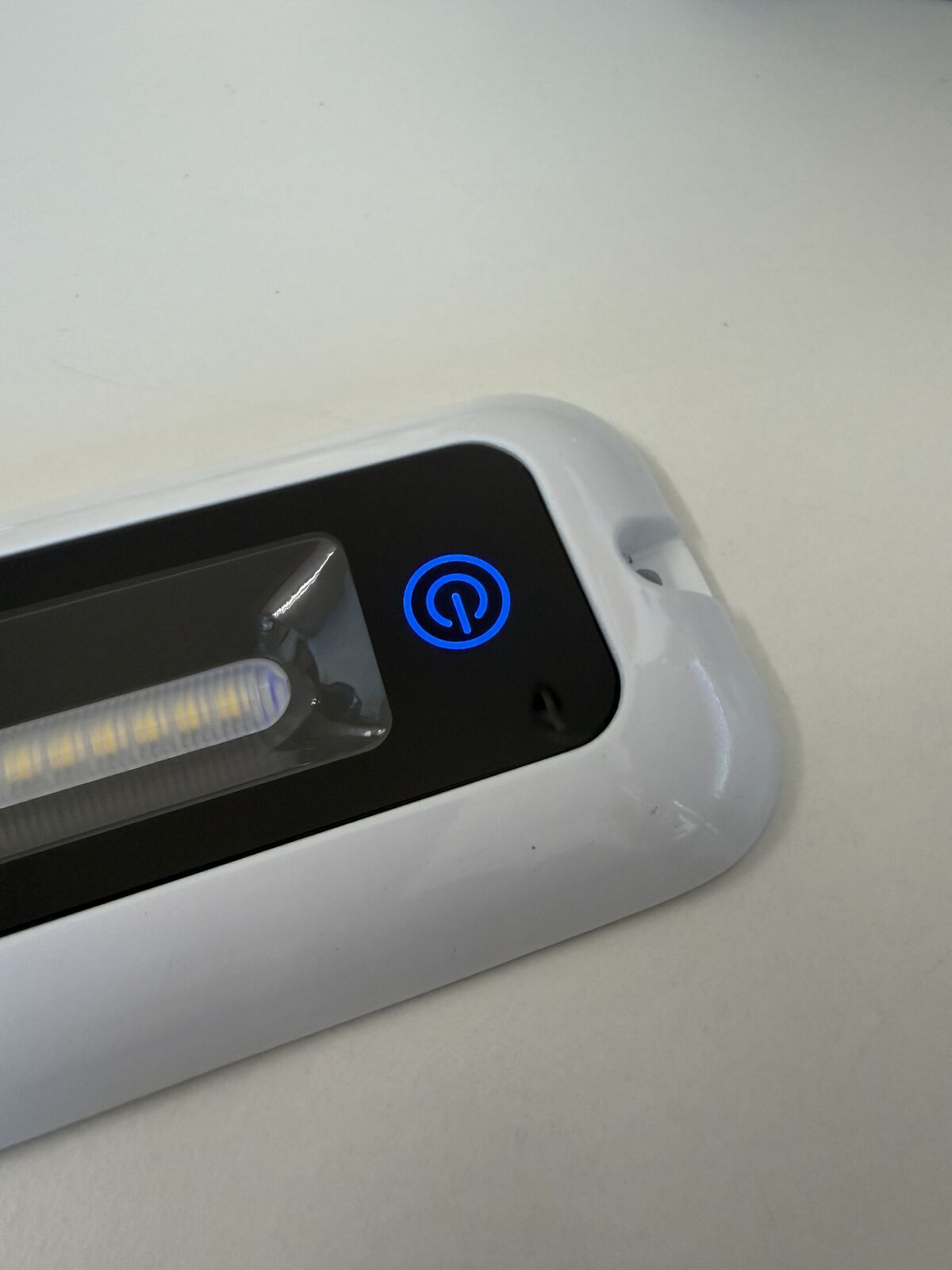

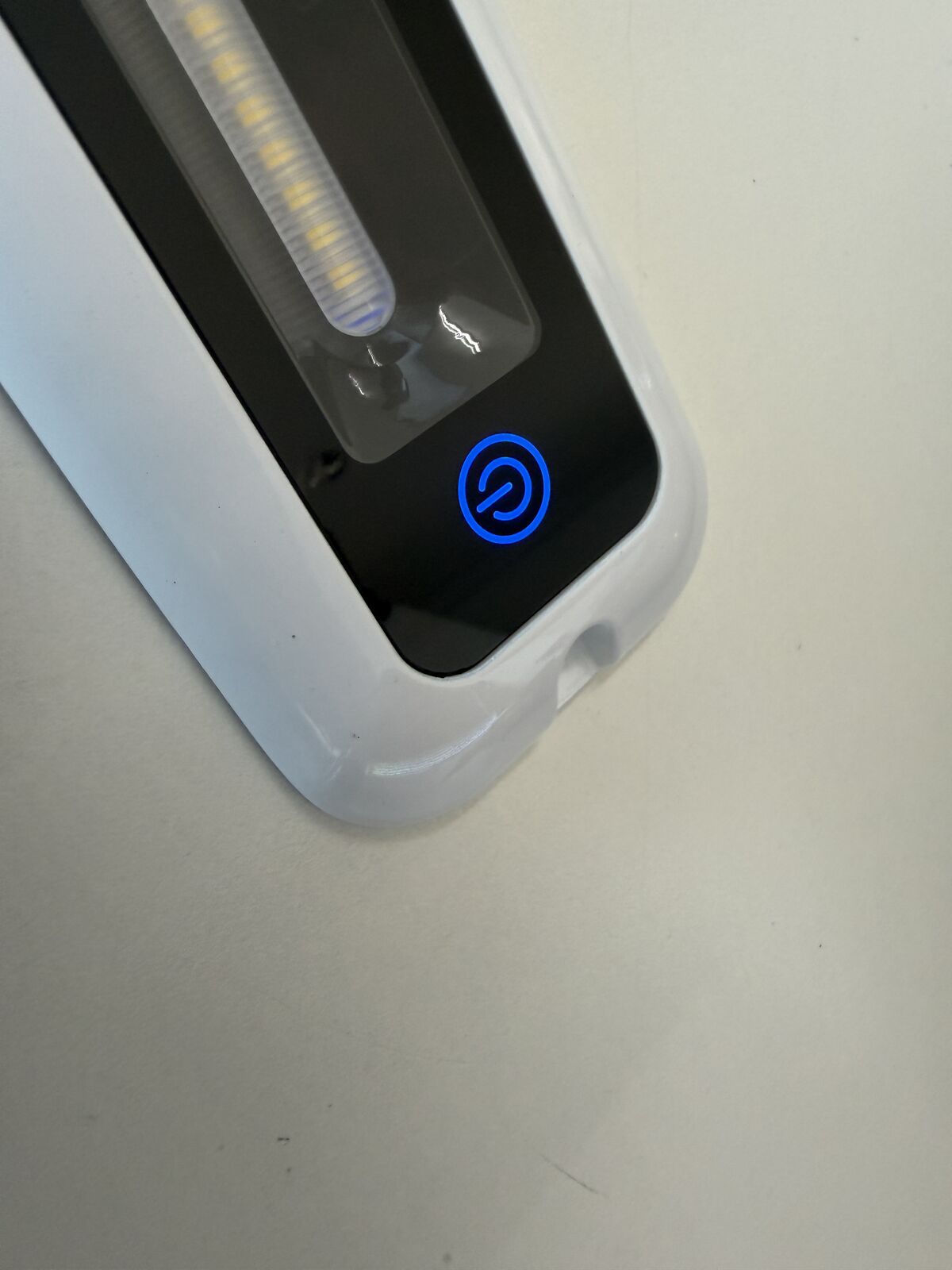

• Integrated on/off switch
• 1200 lumens output
• Cool white light (5700K–6500K)
• Voltage: 10–30V DC
• Current draw: 1A @ 12V / 0.5A @ 24V
• IP67/IP69K rated
• Fully encapsulated for maximum durability
• Operating temperature: -45°C to 65°C
• Surface mount installation
• Cable length: 300 mm
• Certifications: CE, RoHS, REACH, ECE R10
• 3-year warranty

Applications

Ideal for trucks, vans, RVs, caravans, trailers, boats, and other interior lighting applications where simple switch-controlled operation is preferred.

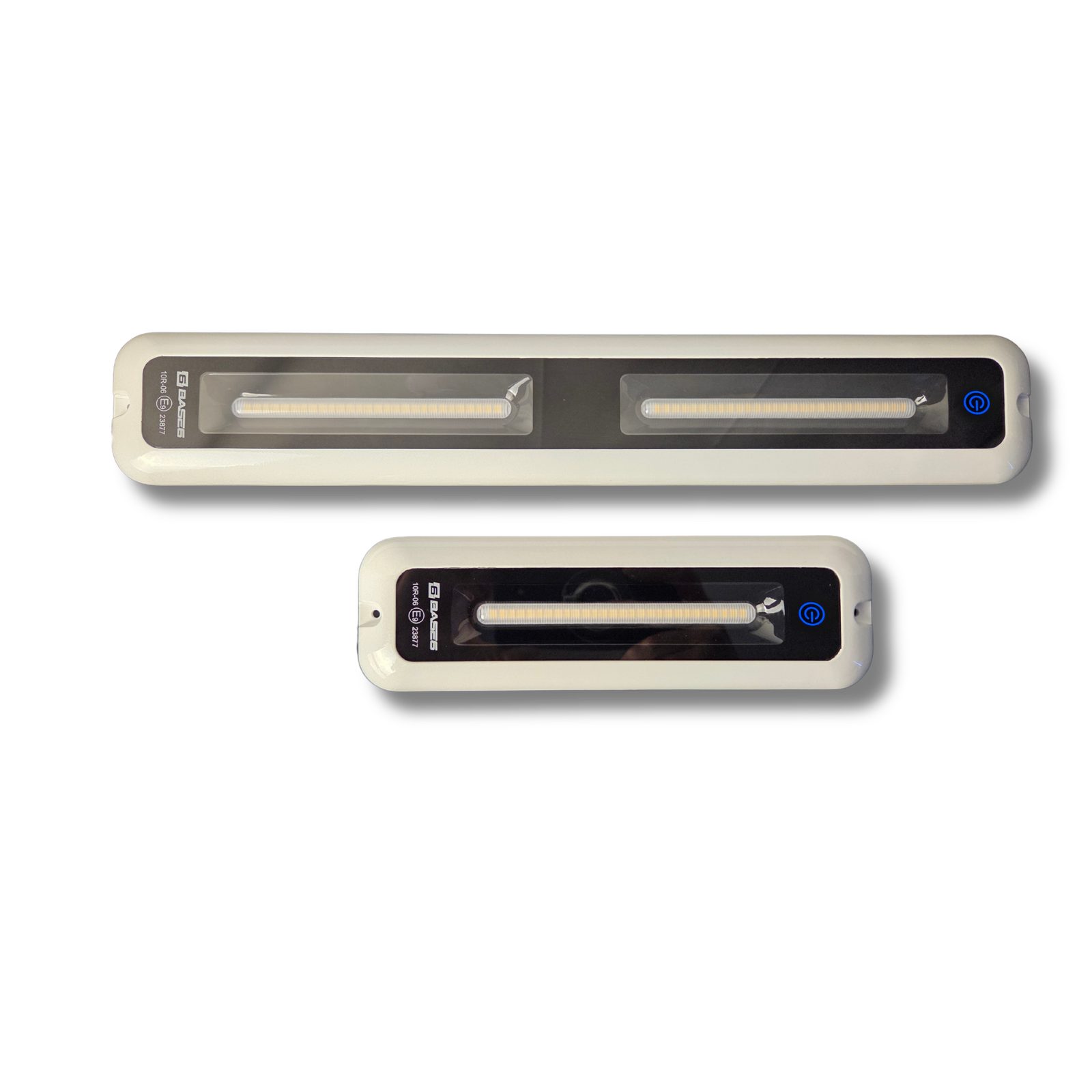

Also available in a 372mm version.

SKU	B6LP207FW-TS
Shipping Weight	0.3000kg
Shipping Width	0.340m
Shipping Height	0.020m
Shipping Length	0.100m
Shipping Cubic	0.000680000m3
