Designed for installations where space is limited, the BASE6 Mini Scene Light delivers powerful white area lighting without compromising performance. Producing up to 1,800 raw lumens (1,335 effective lumens), it's ideal for canopies, service bodies, trailers, caravans, marine applications and 4WDs.
The integrated dimming function allows you to switch between 100% and 50% brightness, giving you the flexibility to maximise light output when working or reduce glare when less illumination is needed.
Built to handle harsh Australian conditions, the Mini Scene Light features a rugged aluminium housing, UV-resistant polycarbonate lens and an IP67/IP69K waterproof rating. It also includes interchangeable black and white covers, allowing you to match the light to your vehicle or installation.
Compact, durable and easy to install, the BASE6 Mini Scene Light is the perfect solution wherever reliable area lighting is required.
| Specification | Details |
|---|---|
| Power | 20W |
| Voltage | 10–30V DC |
| Raw Light Output | 1,800 lm / 900 lm |
| Effective Light Output | 1,335 lm / 710 lm |
| Brightness Levels | 100% / 50% |
| Beam Angle | 45° Downward |
| Housing Material | Aluminium |
| Lens Material | UV-Resistant Polycarbonate |
| Lens Colour | Clear |

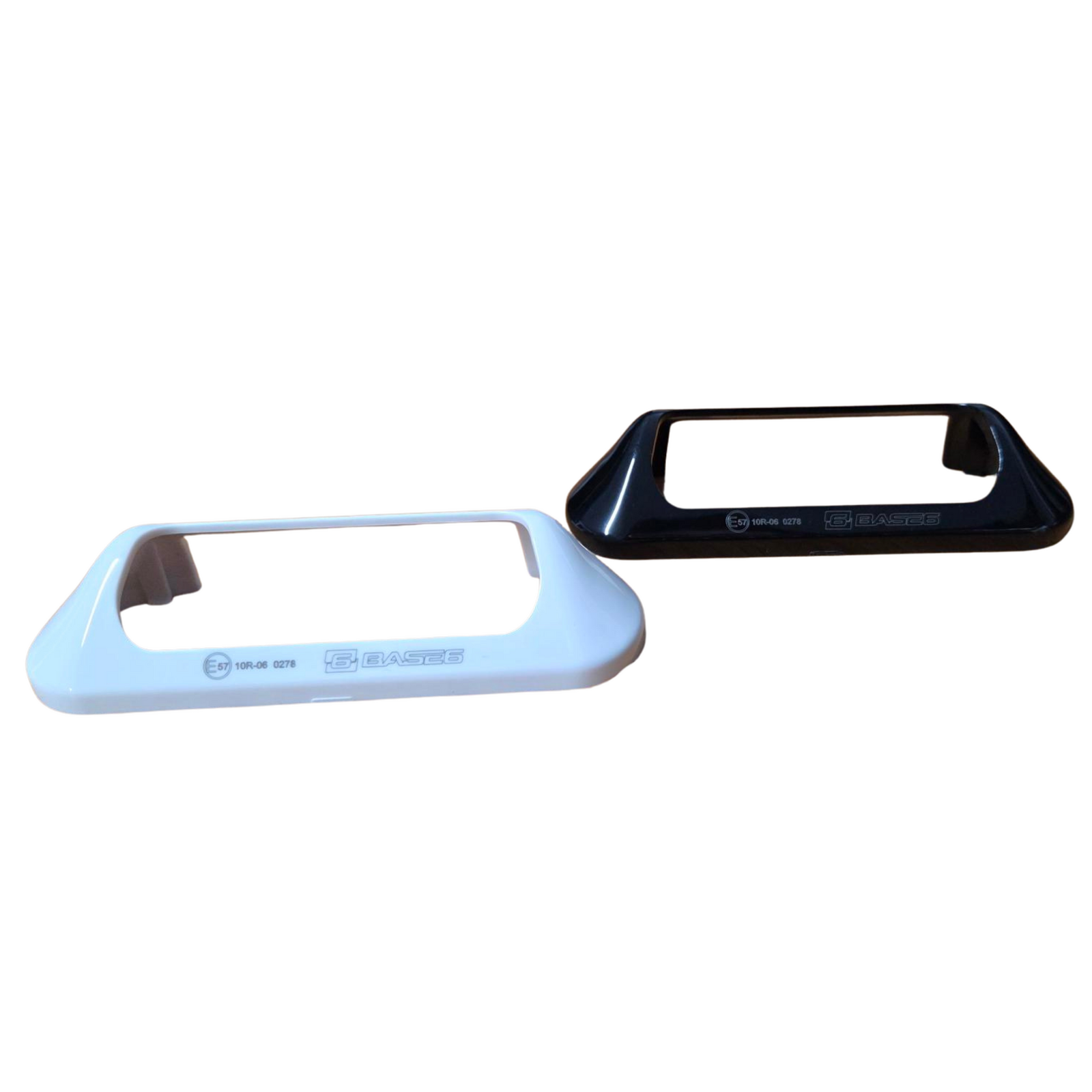

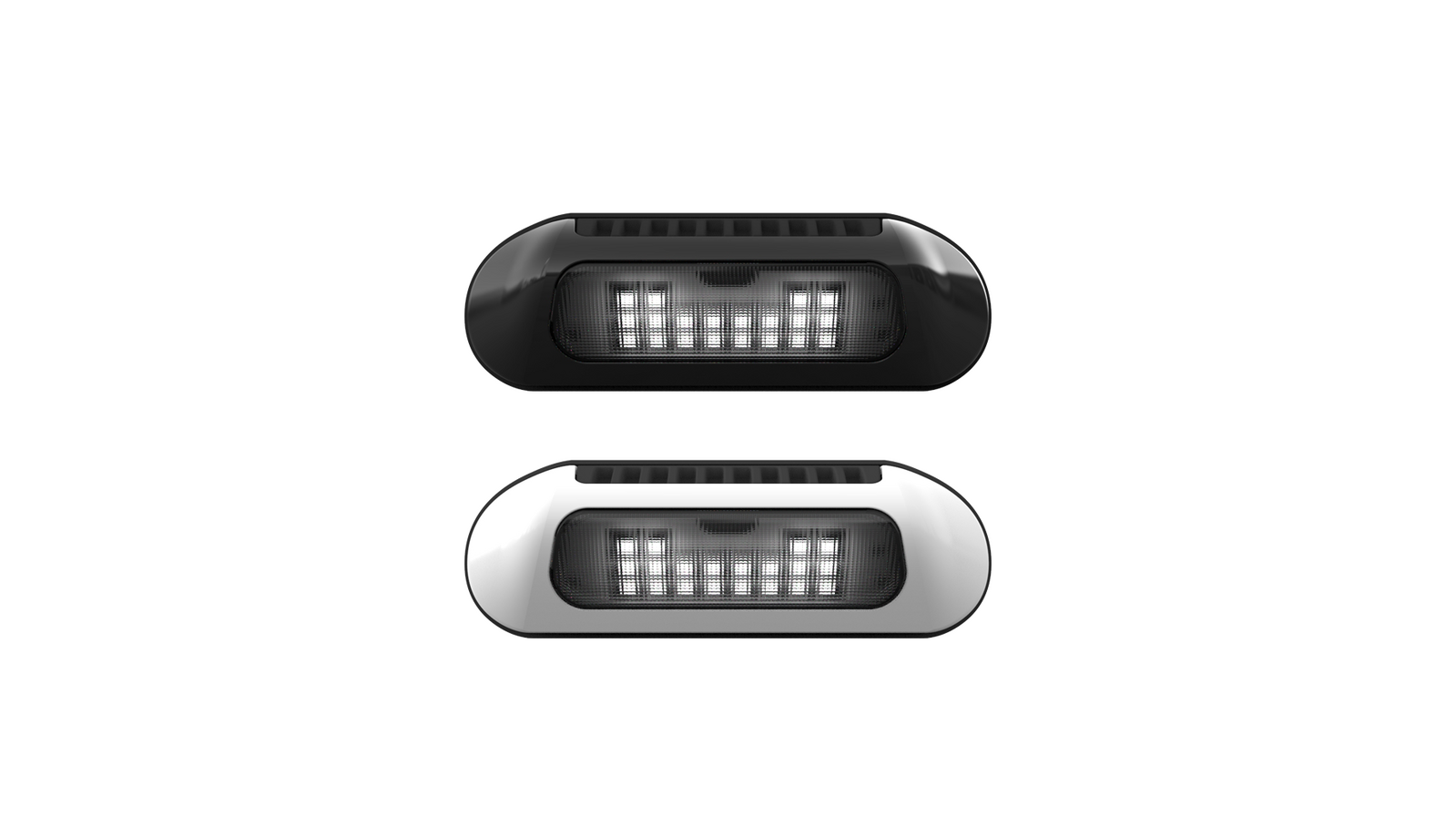

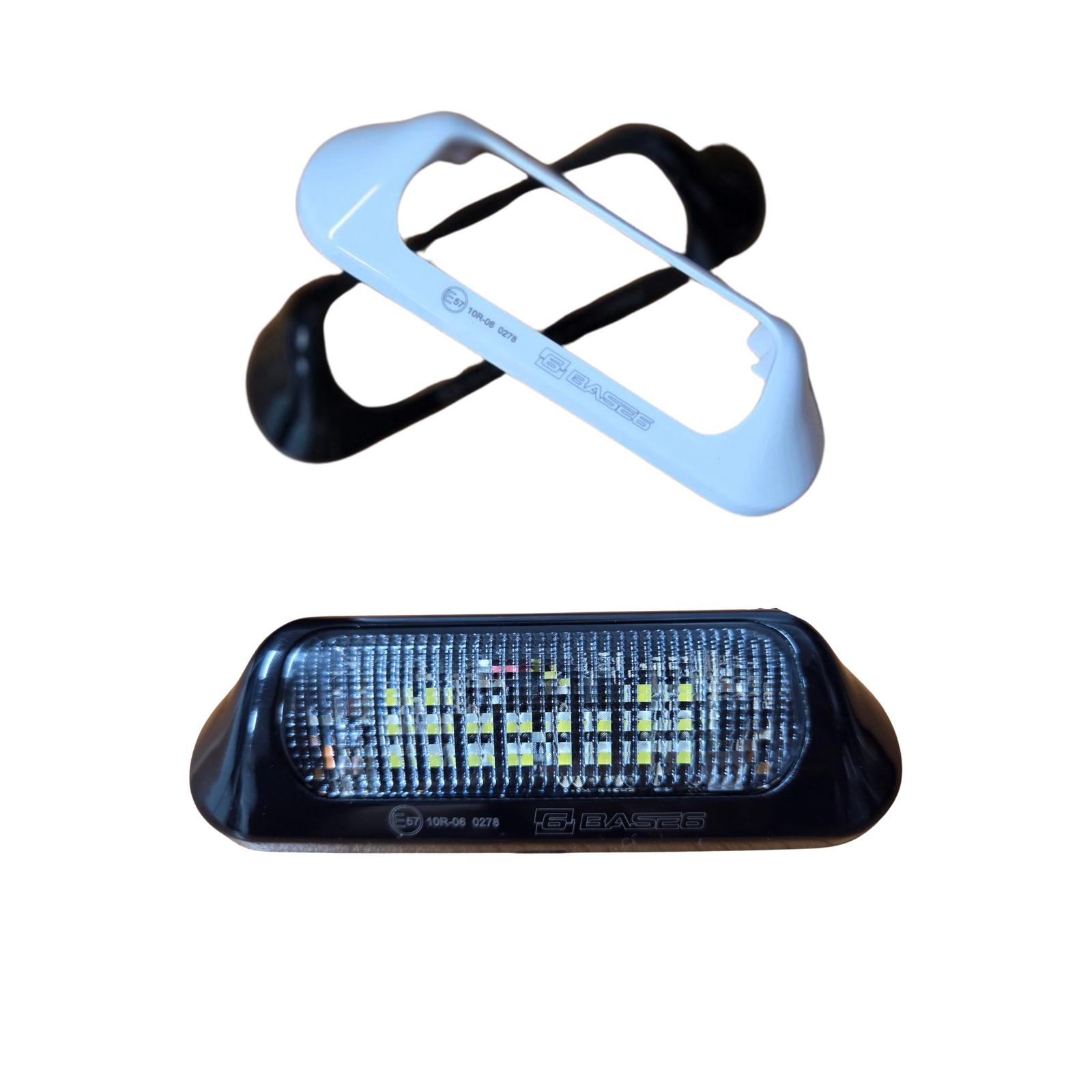

| Covers Included | Black & White Interchangeable Covers |
| Mounting | Screw Mount |

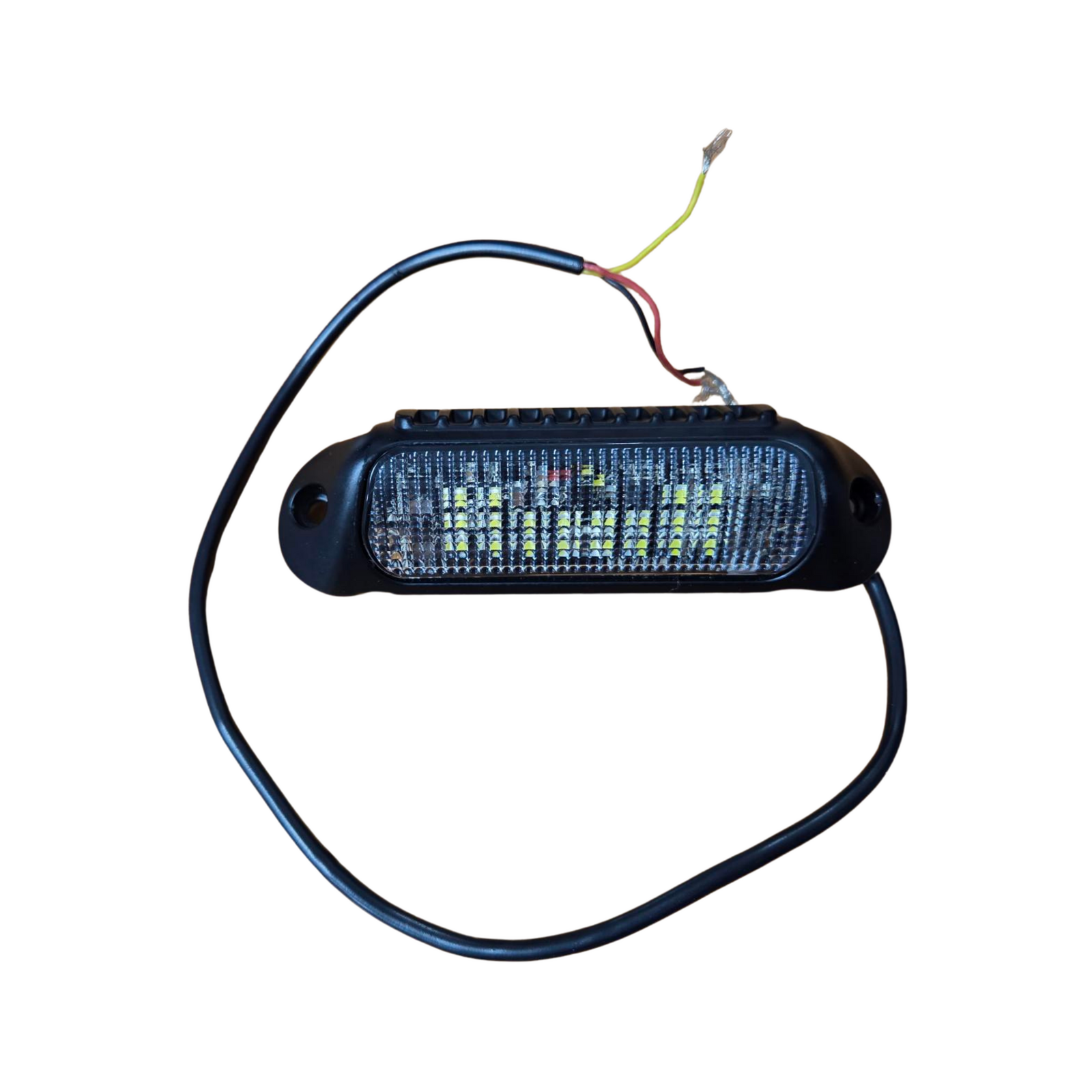

| Cable | 400mm 3-Core Cable |
| Gasket | Rubber |
| IP Rating | IP67 / IP69K |
| Approvals | ECE R10, CE, UKCA |

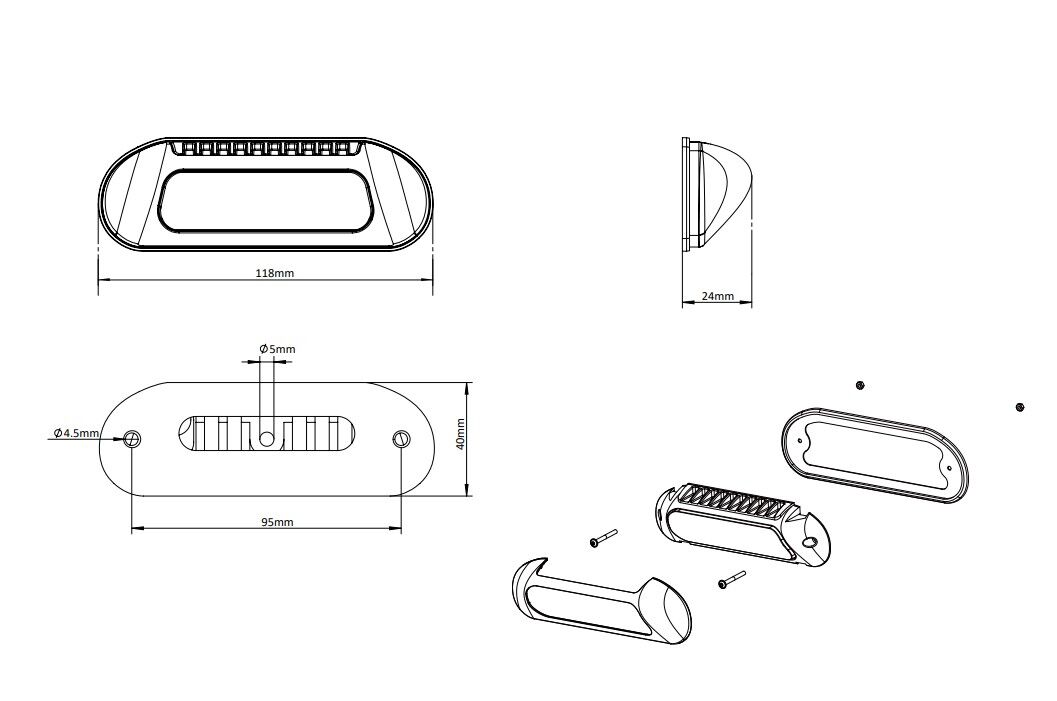

| Dimensions | 118 × 40 × 24mm |
| Operating Temperature | -45°C to +65°C |
| Warranty | 5 Years |
| Wire Colour | Function |
|---|---|
| Red | Positive (+) |
| Black | Negative (Ground) |
| Yellow | Dimming Control (Switches between 100% and 50% brightness) |
| SKU | B6SL5-20W |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
