372mm Lux Panel LED Interior Light

The 372mm Lux Panel LED Interior Light is a high-output solution designed for larger spaces requiring powerful, even illumination. Equipped with 52 premium Osram LEDs and a frosted lens, it delivers a bright yet diffused cool white light (5700K–6500K), ensuring maximum visibility without harsh glare.

Producing an impressive 2400 lumens, this extended panel is perfect for demanding interior lighting applications. Its rugged, fully encapsulated construction and IP67/IP69K rating provide excellent protection against moisture, vibration, and corrosion, ensuring long-term reliability.

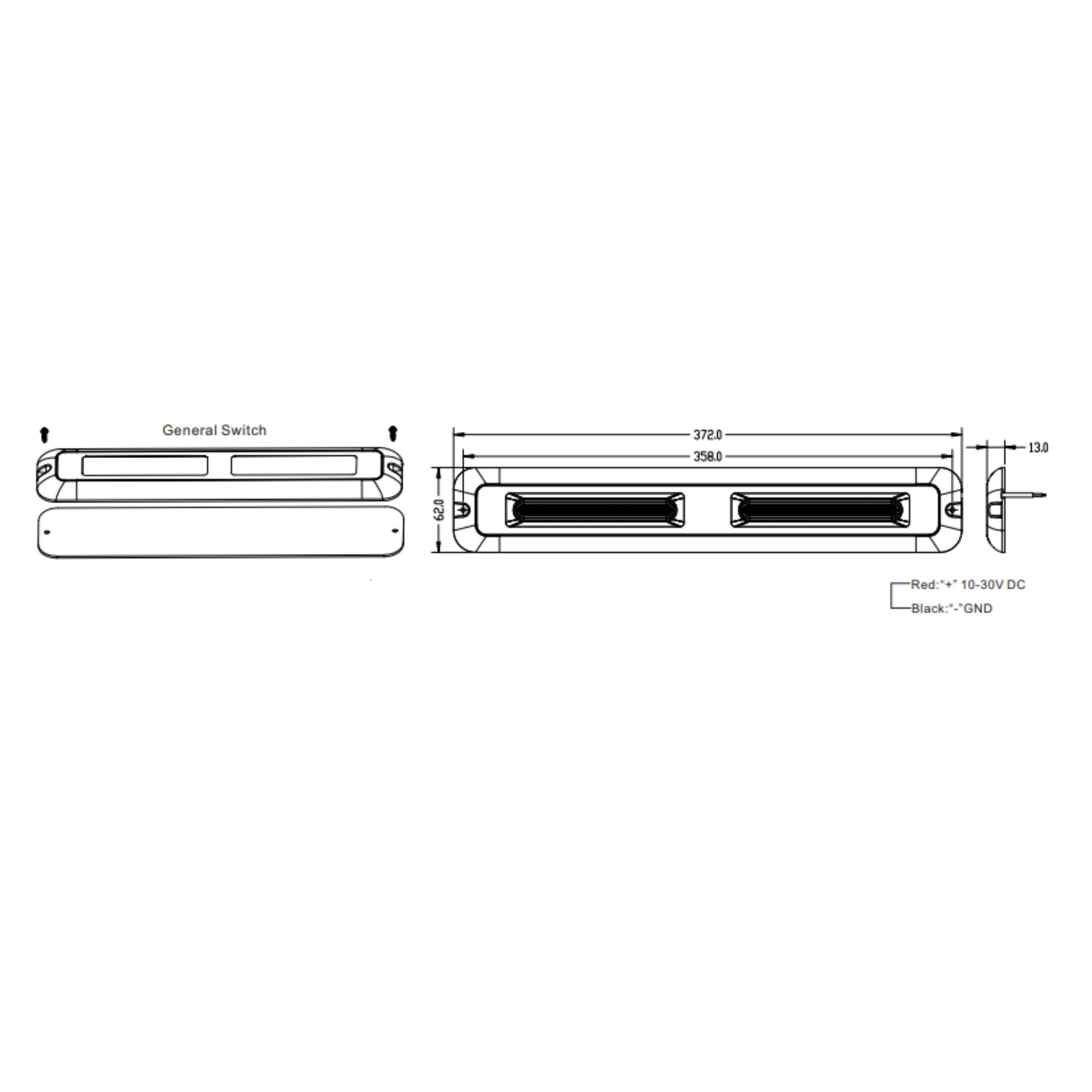

Operating on a wide 10–30V DC range, the light features a 3-wire direct connection (positive, negative, dim) for full dimming capability. Despite its higher output, it maintains a slim, low-profile design (372 × 62 × 12 mm) for easy surface mounting.

Key Features:

• 52 Osram LEDs with frosted lens for wide, even light distribution
• High output: 2400 lumens
• Cool white (5700K–6500K)
• Dimmable (3-wire direct connection)
• Voltage: 10–30V DC
• Current draw: 2A @ 12V / 1A @ 24V
• IP67/IP69K rated
• Fully encapsulated for maximum durability
• Operating temperature: -45°C to 65°C
• Surface mount installation
• Cable length: 300 mm
• Certifications: CE, ROHS, REACH, ECE R10
• 3-year warranty

Applications:
Perfect for trucks, buses, large cabins, trailers, RVs, and marine environments where higher light output is required.

Also available in 207mm
