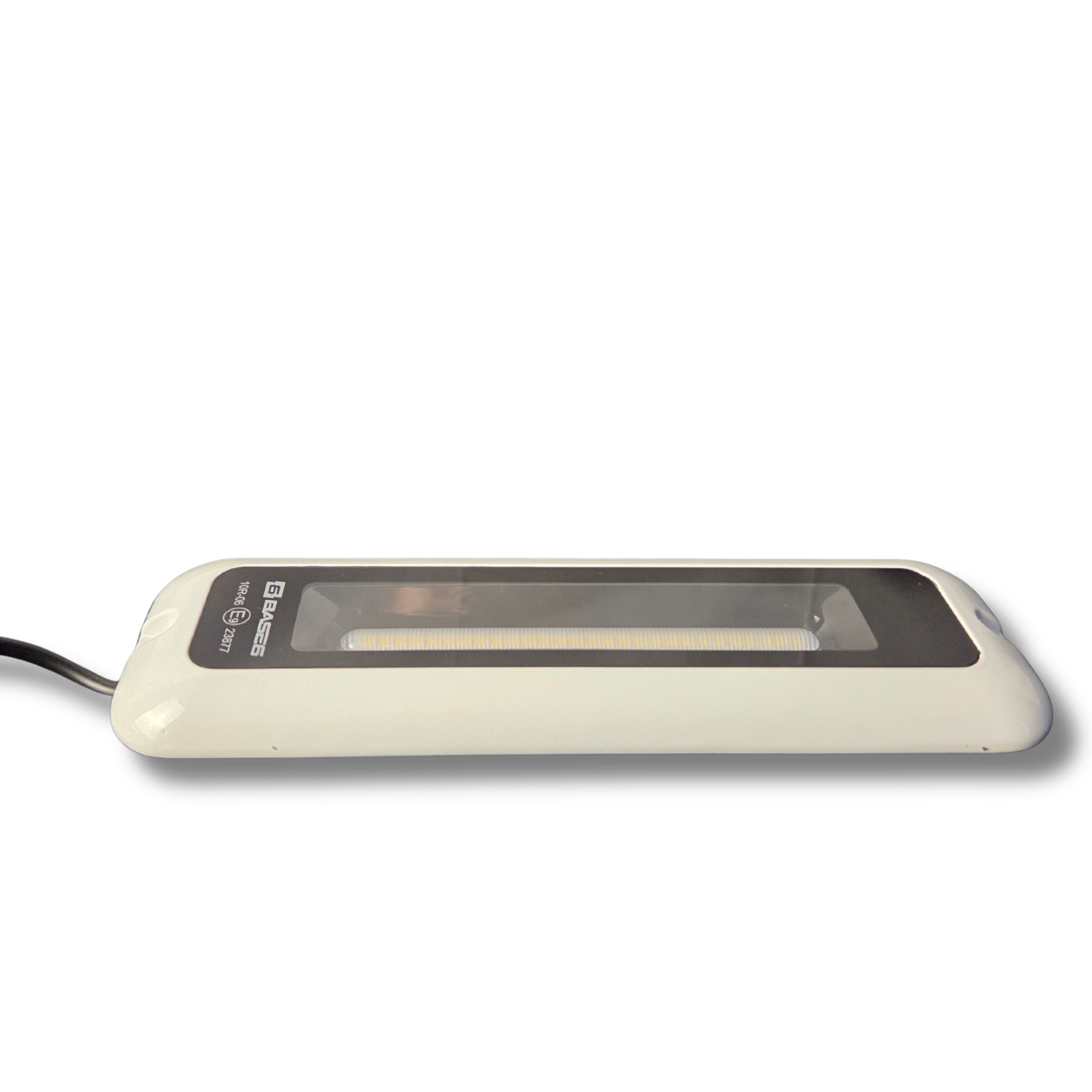

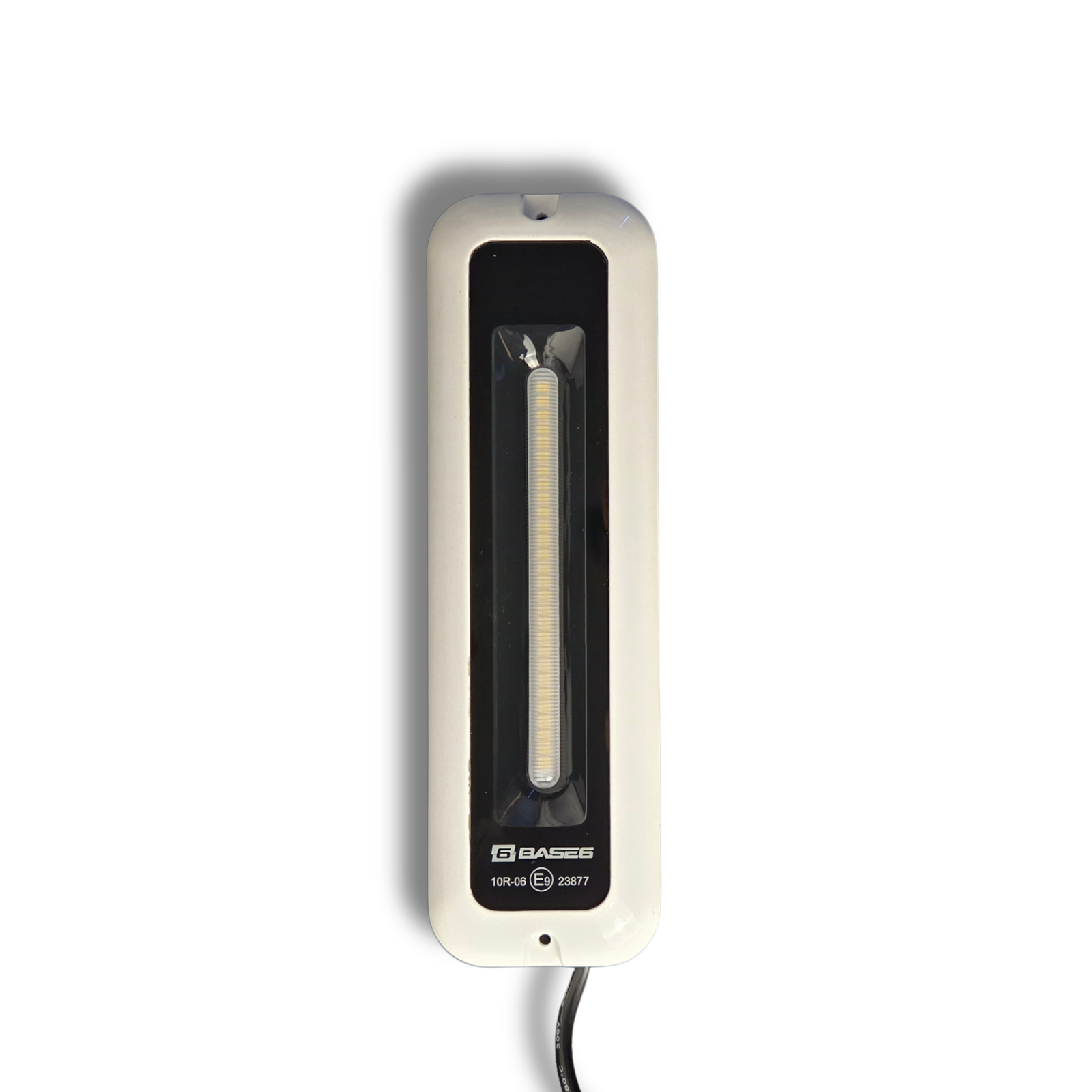

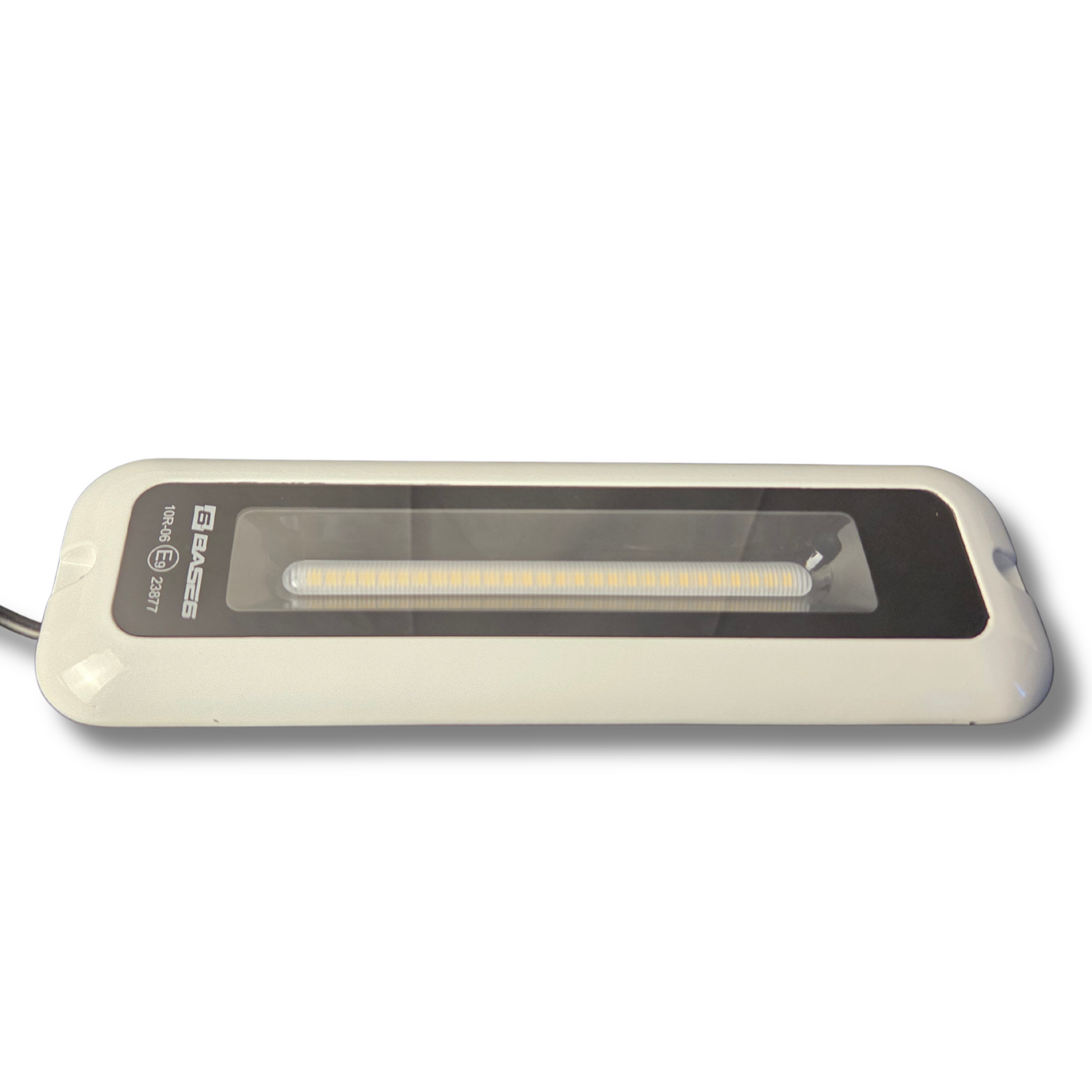

207mm Lux Panel LED Interior Light

The 207mm Lux Panel LED Interior Light delivers bright, uniform illumination in a compact, low-profile design. Featuring 26 high-quality Osram LEDs and a frosted lens, it produces a smooth, glare-free cool white light (5700K–6500K), ideal for a wide range of vehicle and marine interior applications.

With an output of 1200 lumens, this light provides excellent visibility while maintaining energy efficiency. The fully encapsulated construction and IP67/IP69K rating ensure superior resistance to moisture, vibration, and corrosion, making it reliable even in harsh environments.

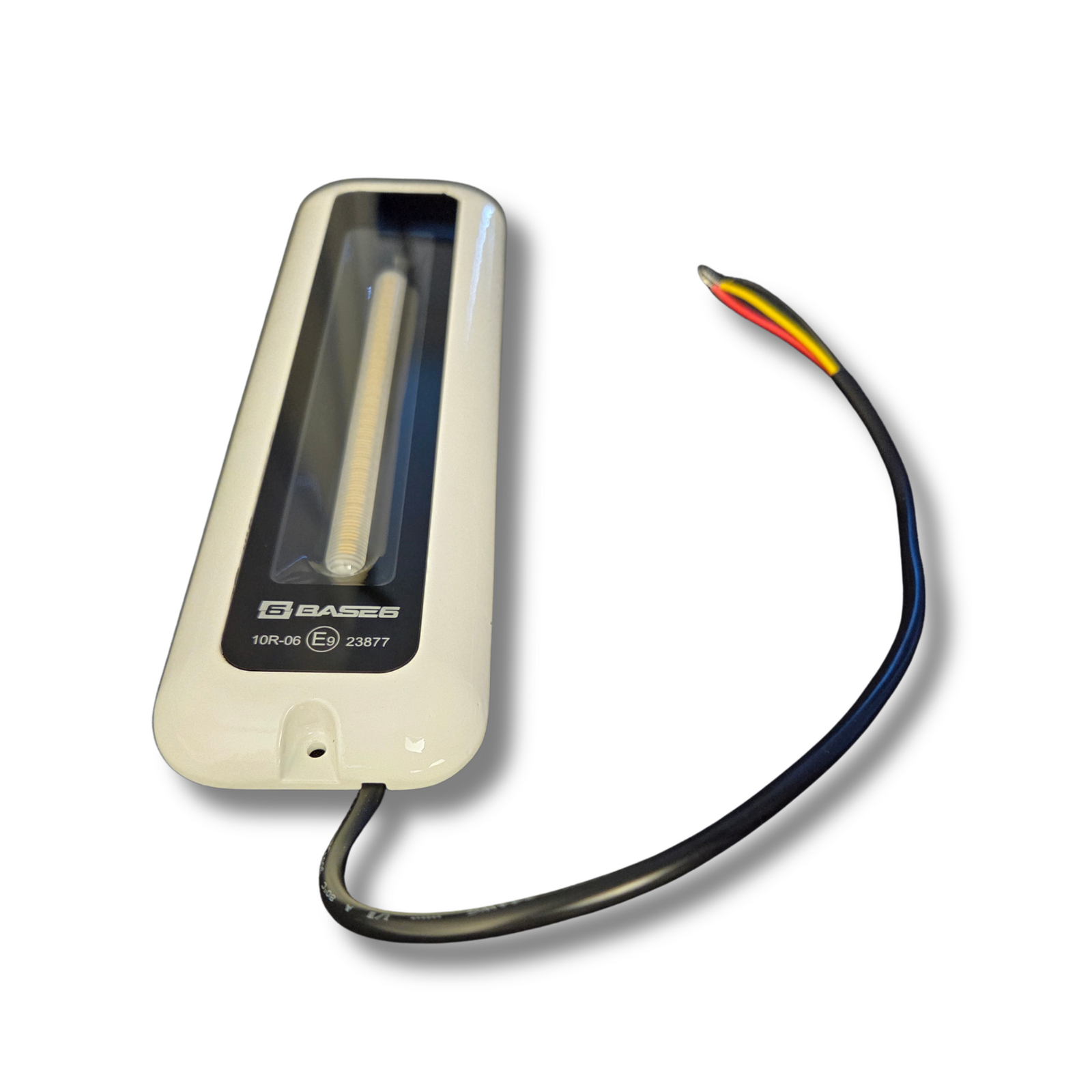

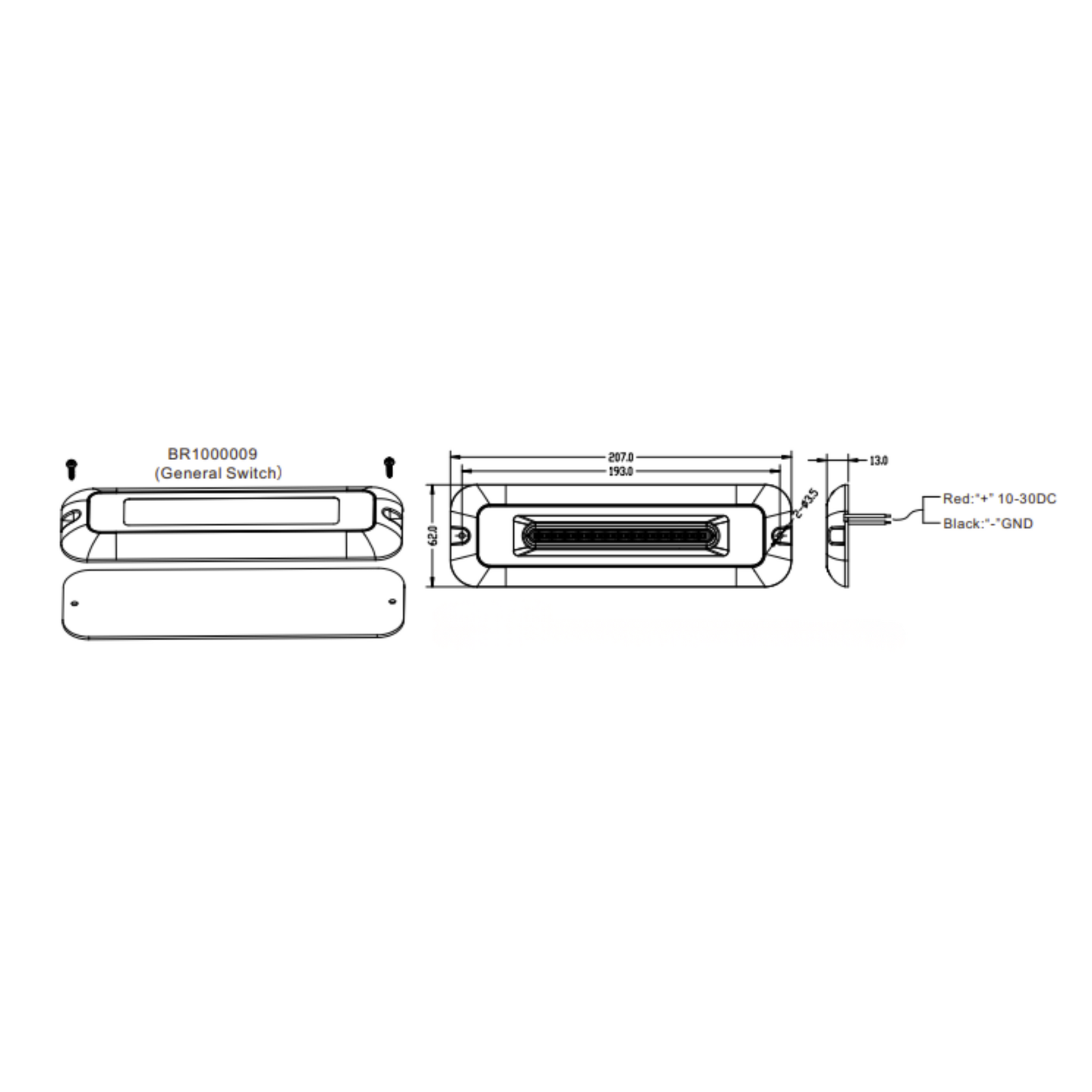

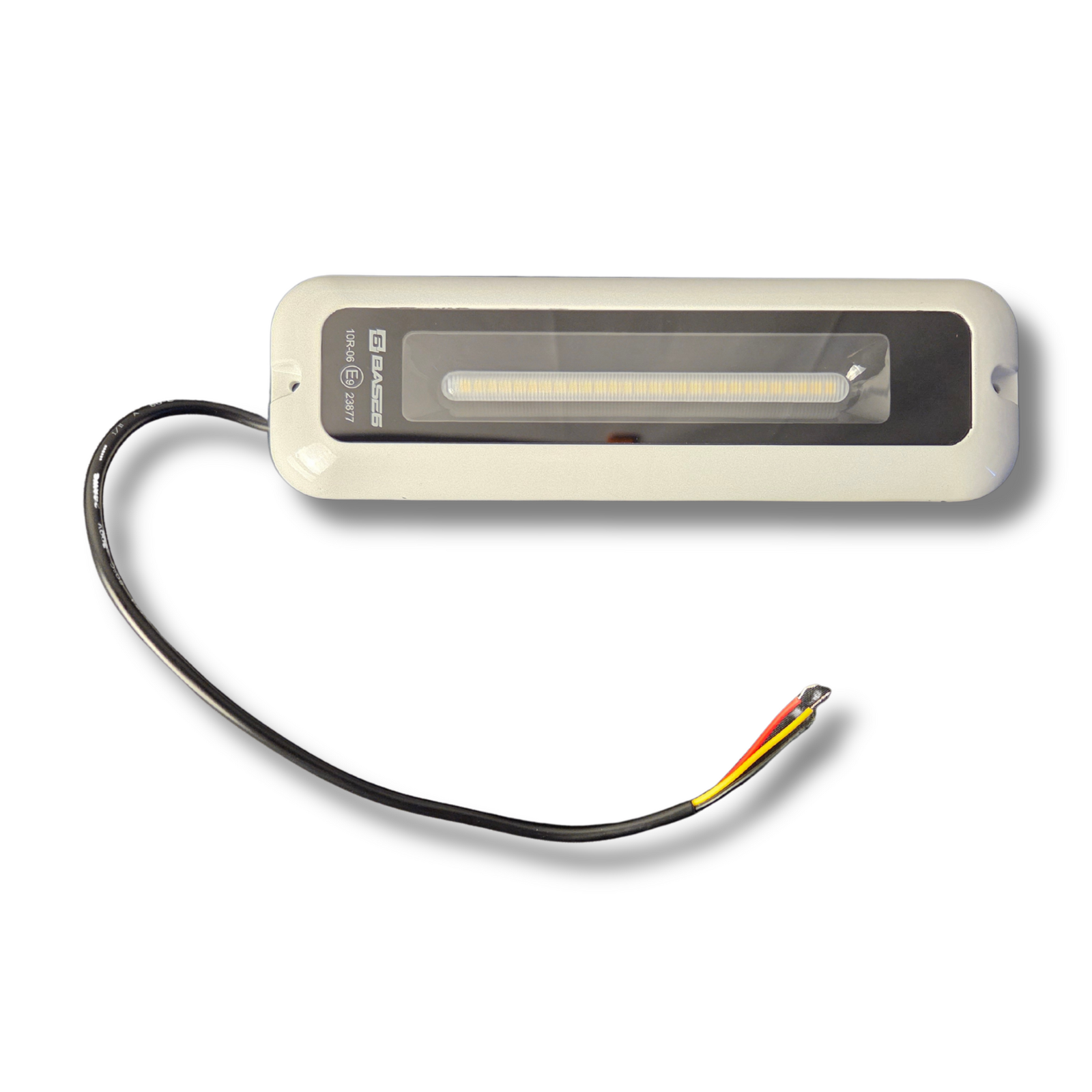

Designed for versatility, it operates on 10–30V DC systems and includes a 3-wire direct connection (positive, negative, dim), allowing for dimmable functionality. Its slim form factor (207 × 62 × 13 mm) and surface mount design make installation quick and straightforward.

Key Features:

• 26 Osram LEDs with frosted lens for soft, even light
• 1200 lumens output
• Cool white (5700K–6500K)
• Dimmable (3-wire direct connection)
• Voltage: 10–30V DC
• Current draw: 1A @ 12V / 0.5A @ 24V
• IP67/IP69K rated
• Fully encapsulated for durability
• Operating temperature: -45°C to 65°C
• Surface mount installation
• Cable length: 300 mm
• Certifications: CE, ROHS, REACH, ECE R10
• 3-year warranty

Applications:
Ideal for trucks, vans, RVs, trailers, and marine interiors.

Also available in 372mm
