IMPORTANT NOTE: This item is stocked at supplier warehouse. Short delays of up to a week can be expected on this item.

BR122ARR PACK ( BR122ARR x 6 + RVSIM SEQUENTIAL INDICATOR MODULE)

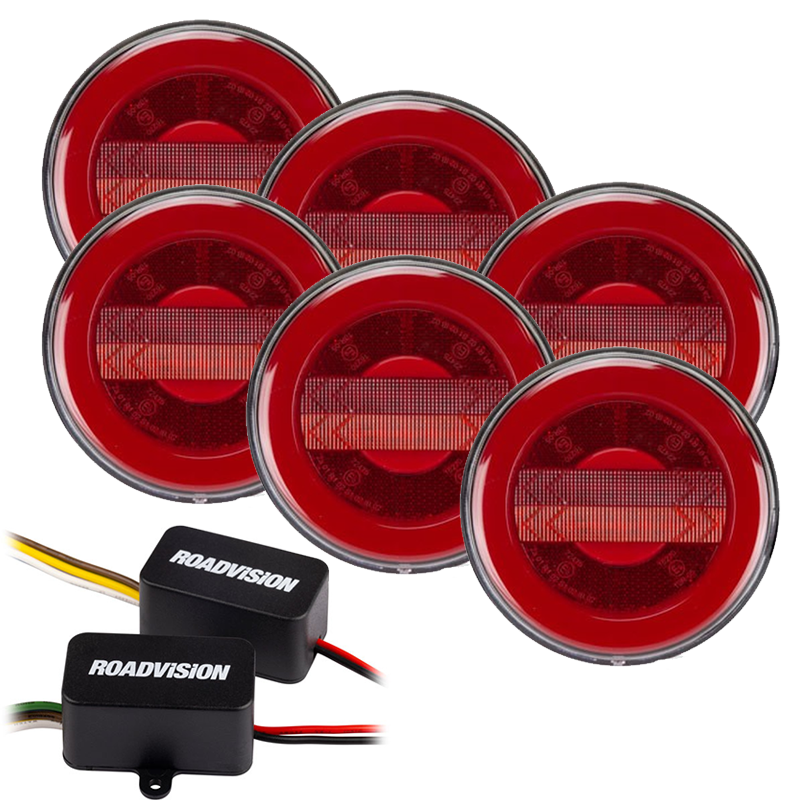

6x BR122 Series Glow Tail Lamps + RVSIM Sequential Indicator Modules

ROADVISION’s BR122 Series round LED signal lamps are a versatile stand-alone or combination lamp solution, featuring Glow Tech tail lights they have both
a contemporary yet classic look! Roadvision’s super bright LED signal lamps deliver the durability of maintenance-free LED technology and greater visibility,
providing increased safety with minimum current draw. Couple this with unbreakable PMMA lenses and an extremely tough housing manufactured from
high impact ABS, the BR122 Series will survive the toughest environments. They are dust, waterproof and totally maintenance-free, with a life span rated at
100,000 hours. With the ROADVISION BR122 Series, it’s FIT and FORGET.



Product Video

*Supplied by Roadvision

FEATURES

  • Multi-volt 10-30V DC input & low current draw
  • Glow Tech tail light
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • High impact ABS housing and PMMA lens
  • Water and dust proof
  • Pre-wired with 300mm of sheathed tinned copper cable
  • Simple surface mount design
  • ADR/ECE approved for all functions



10-30 VOLT PMMA LENS HIGH IMPACT ADR APPROVED WATERPROOF 5 YEAR WARRANTY





DIMENSIONS A&B 122 x 38mm

Specifications

SKU BR122ARR
Input Voltage 10-30 VDC

Number of LEDS



Indicator - 8 LEDs
Stop - 8 LEDs
Tail - 20 LEDs
Current Draw @ 13.8V Ind - 0.1A, S/T - 0.2/0.15A
Lens Construction PMMA
Housing Construction High Impact ABS
Mounting Hole Centres 45mm Stud Centres
Cable Length 250mm Sheathed

Wiring





Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow

Part Number RVSIM
Description Dynamic Indicator Module
Output Type 50cm wires to connect 5 lamps
Current Rating 5A (1A per circuit)
Operating Voltage 12-30VDC
No. of Lamps 3 to 5 lamps
Plastic Shell ABS
Operating Temperature -20°C to 60°C
Unit Weight 40g
IP Rating IP67 (Waterproof)
Dimensions 47.5 x 26.6 x 23.9mm




SKU BR122ARRRVSIM
Shipping Weight 4.0000kg
Shipping Width 0.600m
Shipping Height 0.400m
Shipping Length 0.300m
