IMPORTANT NOTE: This item is stocked at supplier warehouse. Short delays of up to a week can be expected on this item.

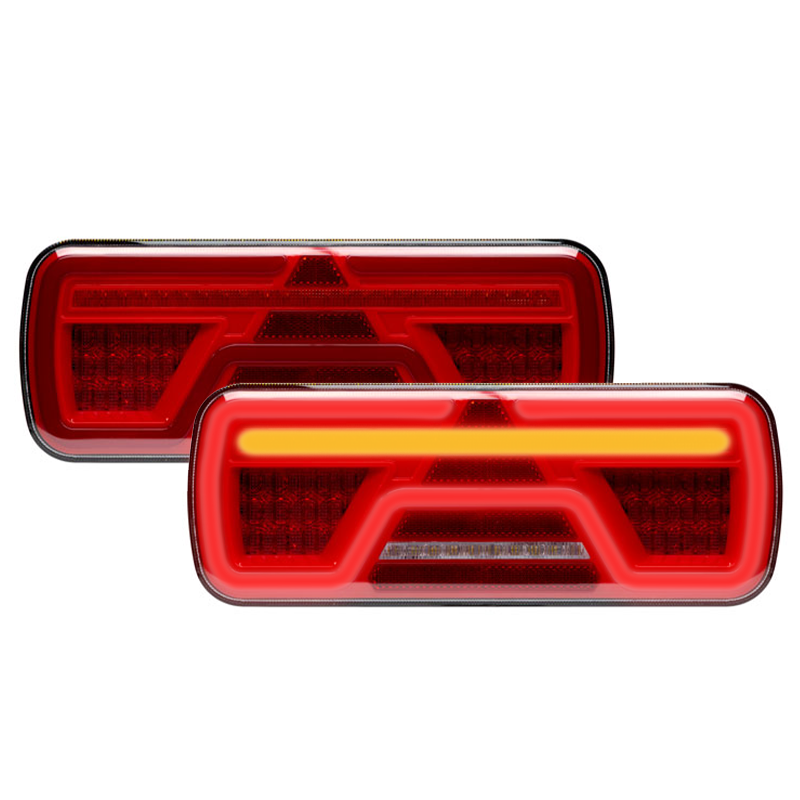

Combination Lamp Rectangle PAIR 1x Left Side | 1x Right Side Stop/Tail/Sequential Indicator/Fog & Reverse



ROADVISION’s BR360 Series are the complete all-in-one fit and forget solution. Featuring the latest sequential indicator technology, the BR360 Series delivers stop/tail, reverse, fog, retro reflector and a sequential indicator that flashes progressively offering an increased level of safety. Constructed with durable polycarbonate lenses and housings, the BR360 Series will survive the toughest environments. Dust & water proof to IP67 and with a life span rated at 100,000 hours, the BR360 Series is totally maintenance free. With ROADVISION it’s FIT and FORGET.



MULTI VOLT
10-30V DC
POLY CARBONATE LENS HIGH IMPACT
HOUSING
ADR APPROVED






WATER & DUST PROOF 5 YEAR WARRANTY



FEATURES

  • Stop/Tail Sequential Indicator, Fog & Reverse functions
  • Retro Reflector incorporated into lens
  • Glow Park Lamp
  • Multi-volt 10-30V DC input & low current draw
  • 100,000HR rated LED lifespan with solid state technology
  • Simple surface mount design
  • ADR/ECE approved for all functions
  • Light weight tough polycarbonate housing & lens

Specifications

Part Number BR360LARW & BR360RARW
Description Combination Lamp Rectangle
Functions Stop/Tail/Sequential Indicator/Fog & Reverse
Voltage Input 10-30V DC
Number of LED's




24 LEDs:
Stop - 12 LEDs
Tail - 60 LEDs
Reverse 10 LEDs
Fog - 12 LEDs
Current Draw Amps Ind - 0.2A, S/T - 0.2/0.3A, Rev - 0.3A, Fog - 0.4A @ 13.8V
Dimensions AxBxC 360x135x36mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole Centre 152mm Stud Centres
Cable Length 300mm Sheathed
Wiring Colour Codes





Earth - Black
Stop - Red/Blue
Tail - Green
Indicator - Green/Brown
Reverse - Green/Violet
Fog - Red
ADR Approval




Ind - E9-6R01/28-22818-00
S/T - E9-7R02/27-22818-00
Rev - E9-23R00/22-22818-00
Ref - E9-3R02/17-22818-00
Fog - E9-38R00/19-22818-00
SKU BR360LR-PR
Shipping Weight 1.5000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.200m
