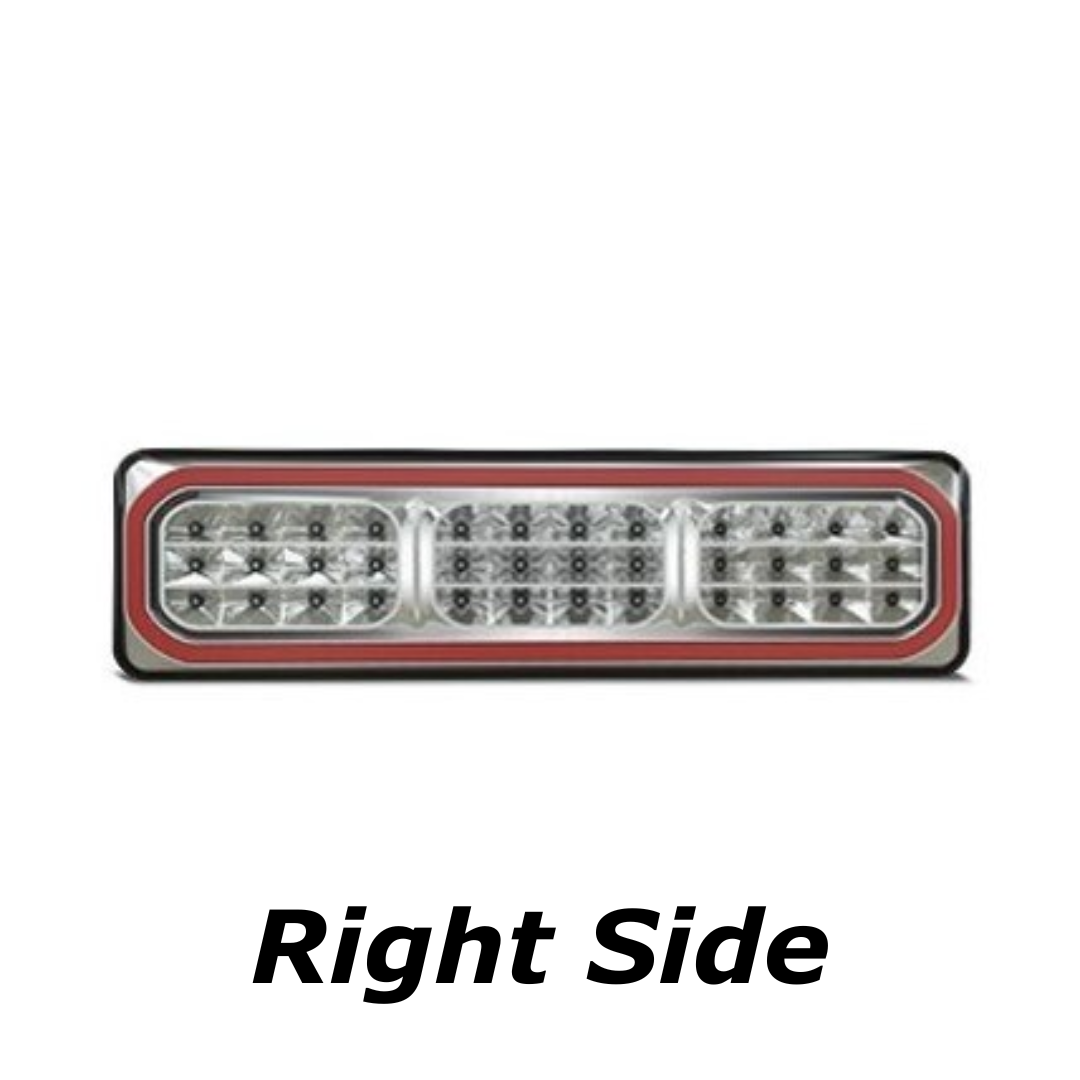

3852 Series Tail Light CSB Plug Single Right Side LED Autolamps

Pricing.template

$199.54 SAVE
Don't Pay Instore Price: ~~$249.42~~

Buying under an ABN?
Apply for Trade Pricing Today

✔ Instock at Supplier Warehouse
✔ Dispatch within 7 Days
✔ Free Shipping

Free Shipping $99+*

Locally Owned Business in Brisbane

Afterpay Available. Shop Now. Pay Later

Manufacturer Warranties

*Excludes some items and select suburbs due to high shipping costs.

Downloads

Data Sheet

IMPORTANT NOTE: This item is stocked at supplier warehouse. Short delays of up to a week can be expected on this item.

RHS STOP/TAIL/INDICATOR/REVERSE DIFFUSED TAIL, MULTIVOLT, 385 X 104 X X31MM, ECE, BULK

Features / Specifications

Diffused Tail Function
ECE Road Approved
12-24 Multivolt
IP67 Rated
5 Year Warranty

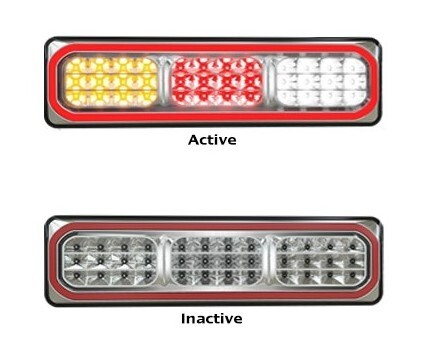

Function Stop/Tail/Indicator/Reverse
Size 387mm x 105mm x 30.5mm
Voltage 12-24 Multivolt
LED Qty 96
Cable 40cm
Lens PMMA
Base ABS
Draw Stop Tail Ind Rev
@13.8V 0.11A 0.39A 0.16A 0.20A
@28V 0.06A 0.20A 0.09A 0.10A
Approvals Function Approval No.
ECE Stop/Tail E9*7R02/27*23893*00
ECE Indicator E9*6R01/29*23893*00
ECE Reverse E9*23R00/22*23893*00

Fitting Instructions
Separate the base plate from the lamp and horizontally mount onto a flat
surface using screws provided, ensuring the arrow on the lens is pointing
outwards of the vehicle. Run wire through hole in fixing surface then re-align
the lamp and clip into the mounting base using light pressure to ensure it
sits in place correctly. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings

SKU	LED3852ARWMRCSB
Shipping Weight	0.6000kg
Shipping Width	0.145m
Shipping Height	0.055m
Shipping Length	0.524m
Shipping Cubic	0.007068000m3
