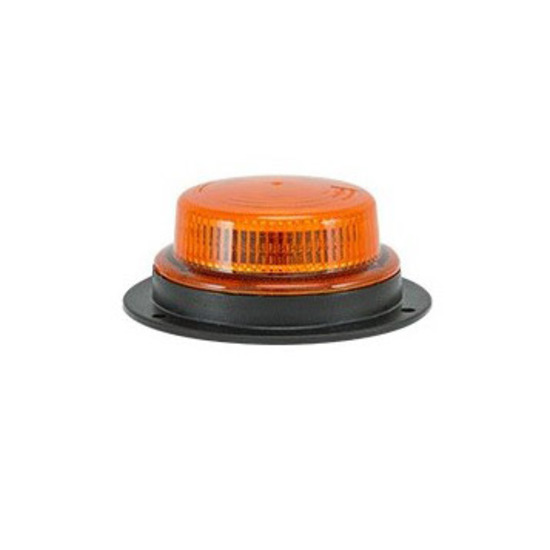

LRB130 LED Rotating Beacon Effect
LEDLRB130
More infoMake 4 interest-free payments of $21.78 fortnightly and receive your order now.

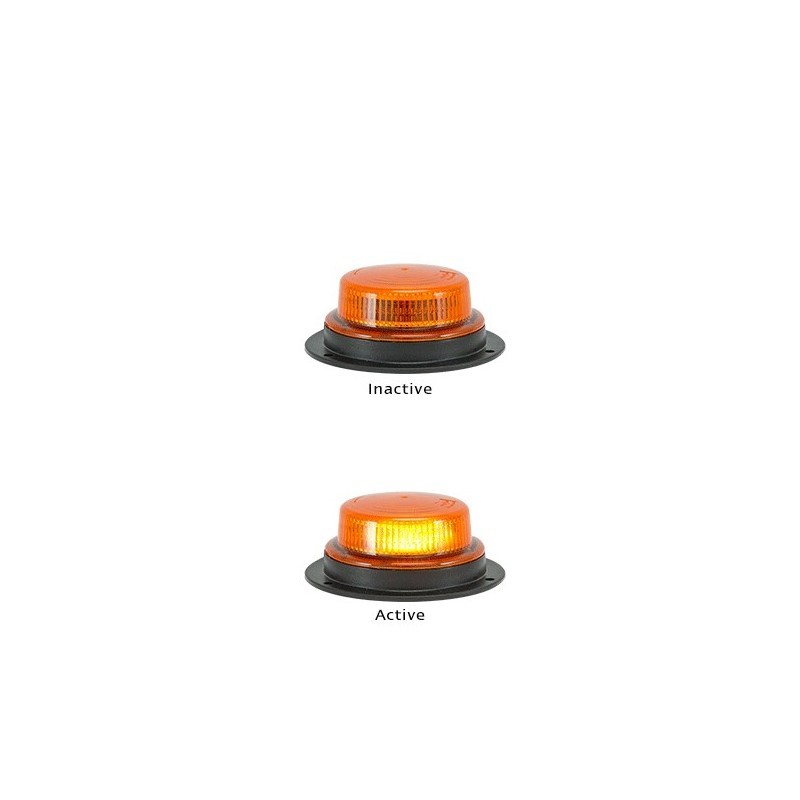

The Economy mid size rotating LED Beacon is a great alternative to the traditional halogen rotating beacon. It has no moving parts and a simulated rotating flash pattern. The low profile of this beacon makes them a must where height restrictions apply, they measure just 53mm high.
The power usage is very low at 4.5 Watts peak and 3 Watts average.
Manufacturer 3 Year “no hassle” warranty for you peace of mind.
Fitting Instructions
Run wires through hole in fixing surface or from the side of the base. Attach with screws provided; ensure foam gasket is between lamp and fixing surface.
(LEDLRB130)
Features / Specifications
- Rotating Pattern
- Two sizes available
- SAEJ845 compliant
- IP Rating IP67
- Voltage Range 12-24 Volt
- 130mm Round x 53mm, 144mm Round x 93mm
| Part No. | |
| LRB130 | Single blister |
| Size | 130mm round x 53mm |
| LED Qty | 20 |
| Cable | 40cm |
| Draw | |
| @13.8V | 0.11A |
| @28V | 0.07A |
| Approvals | Category |
| SAE J845 | Class 3 |
| SKU | LEDLRB130 |
| Brand | LED AUTOLAMPS |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.160m |
| Shipping Length | 0.130m |
| Assembled Width | 0.200m |
Product DataSheet Download
