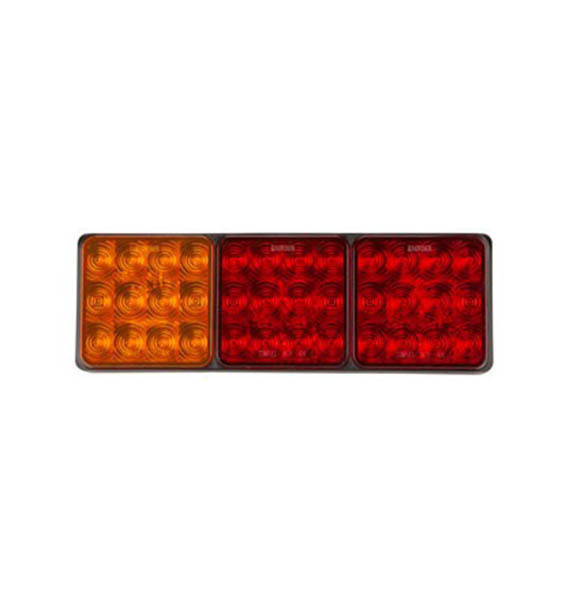

ROADVISION’s BR82 Series triple combination trailer lamps! The complete all-in-one fit and forget solution. Roadvision’s super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR82 Series are the complete all in one solution with Stop, Tail, Indicator & Reverse all in the one lamp. The BR82 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are weather resistant and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.



FEATURES

  • Compact LED combination lamp
  • 10-30V DC input & low current draw
  • Brighter than conventional incandescent systems
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • High impact ABS housing & sealed polycarbonate lens
  • Waterproof
  • Pre-wired with 300mm of sheathed tinned copper cable with LEDLink Connector
  • Simple surface mount design
  • ADR/ECE approved for all functions

Specifications



Part Number BR82ARR
Description Rectangle Triple Combination
Functions Stop/Tail & Indicator
Voltage Input 10-30V DC
Number of LED's Indicator - 12 LED's
Stop/Tail - 24 LED's
Current Draw Amps Ind - 0.1A @ 13.8V
S/T - 0.2/0.05A @ 13.8V
Dimensions AxBxC 282x95x30mm
Lens Construction Polycarbonate
Housing Construction High Impact ABS
Mounting Hole Centre 120mm Stud Centres
Cable Length 300mm Tinned Copper LEDLink Connector
Wiring Colour Codes Earth - White
Stop - Red
Tail - Brown
Indicator - Green or Yellow
ADR Approval Ind - CRN 49825
Stop - CRN 49819
Tail - CRN 49820
SKU BR82ARR
Brand ROADVISION
Shipping Weight 0.2000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.150m
