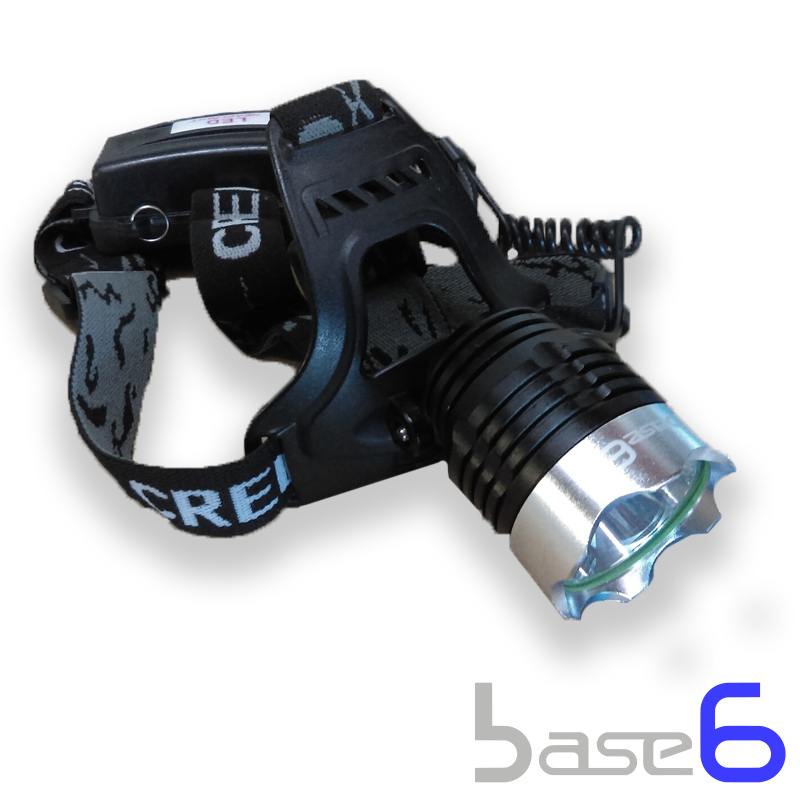

Base6 Headlamp, 1000LM, 350M, IPX6, CREE XM-L T6 LED's, , Max/Min/Strobe, Requires 2 x 18650 Batteries

Base6 LED Headlamp

With the high efficiency and powerful drive circuit, the Base6 Headlamps are pushing out reliable and consistent light that will last the test of time. The B6THT16B delivers power where you need it, how you need it and when you need it every time!

The model also brings with it modes. Each one of these headlamps are designed to have 3 main modes for the light,

you have the standard light mode producing an average light output of 150 lumens.

The Overdrive mode allows you to produce extreme light for short periods of time reducing the need to own and carry multiple lights.

Strobe allows the user to turn the headlamp into an automatic disorientation light that will flash repeatedly until switched off.

●The dual-section reflector was designed just for these CREE LED's it improves reflective efficiency and focusing capability by up to 35%.
●Rear control switch for switching between the three modes.
●Genuine CREE XM-L T6 LED's allow the light to produce the maximum amount of output with tests showing 1000 lumens.
●Specially designed for the outdoorsman looking to get quality light in the convenience of a headlamp.

Press the tail control switch to change the brightness modes(Overdrive-Standard-Strobe-OFF).

OverDrive output of 1000 lumens for approximately 3 hours (It is recommended NOT to run Overdrive for extended periods of time. Suggested Max time 15mins)
Standard output of 150 lumens for approximately 15 hours
Note: Stated brightness and runtime figures are based on tests using two 18650 Li-ion batteries (approximate 2600mAH) under laboratory conditions. Variances in these figures will occur depending on battery used and individual usage habits

Batteries not included



LED Type: CREE XM-L T6 with 50000 hours life span
Max Output: 1000LM
Reflector: A custom-designed high performance aluminum reflector projects long-range beam
Lens: Toughened ultra clear and anti-abrasion glass with AR coating
Circuit: Intelligent highly efficient circuit board design for max performance
Function: Max-Min-Strobe-OFF
Battery: 2*18650
Working Voltage: 3.0V to 4.2V
Switch: Rear switch
Impact Resistant: 1.5m
Material: Aircraft grade 6061-T6 aluminum alloy
Finish: Anodic oxidation
Waterproof: IP67 standard
Dimensions: Body width 42.5mm
Body height 42.5mm
Total length 53mm
Weight (without battery): 200g

Brand Base6
Shipping Weight 0.5000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.100m


Data Sheet Download
