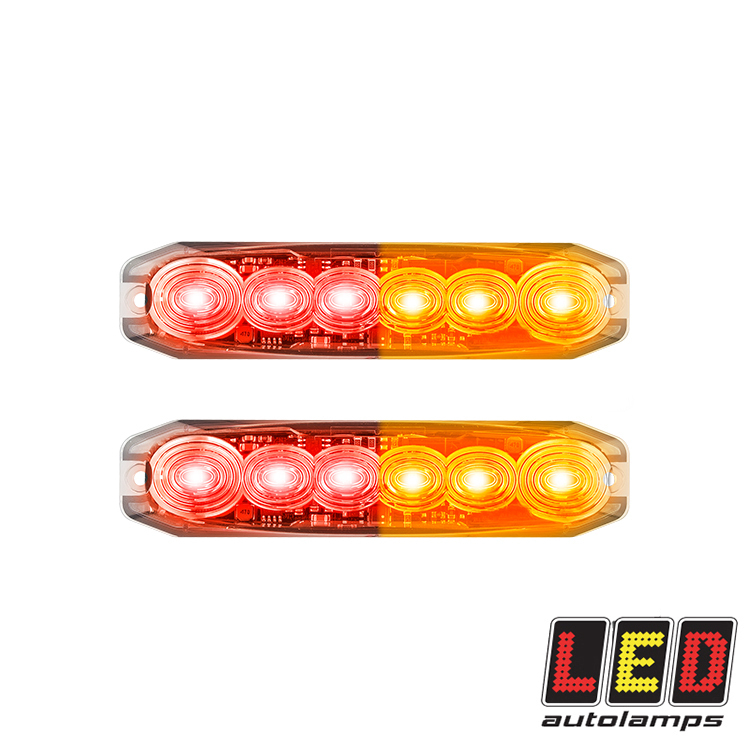

What are the LED Autolamps 12 series LED Tail Lights? (Sold as a pair)

The 12 series LED tail lamps look great with a slick, clean, modern design that will enhance any trailer application. Whilst inactive they sport a clear lens and a black PCB, but when activated and lit up you are sure to let other motorists know where you are and what you’re up to. Measuring just 130mm wide, 30mm high and only 8mm on its side profile makes them perfect for small, tight spaces. The low-profile design also provides the benefit of helping avoid unwanted impact damage which can lead to costly downtime to replace.

These LED tail lamps offer dual voltage, 12/24 Volts as well as an exceptionally low current draw of only 0.20Amps for Stop, 0.02A Tail and 0.16A for Indicator @ 13.8 Volts, which is very important when considering battery system requirements. Six high powered SMD LEDs are directed through an enhanced Fresnel style lens design. This ensures the greatest light efficiency possible, which not only shines brightly in all functions but exceeds the stringent ECE standards for road approval. They have also been tested and approved for vertical or horizontal mounting, giving you flexibility and choice when it comes to installation.

LED have made standard the use of super-strong 3M tape with screws for fixing to any clean flat surface. The high-quality 3M tape ensures a secure, strong adhesion and will not move or budge even when subjected to high-pressure cleaning. The 12 series have been specially designed to be fit for purpose with ease of fit in mind and will surely not disappoint.

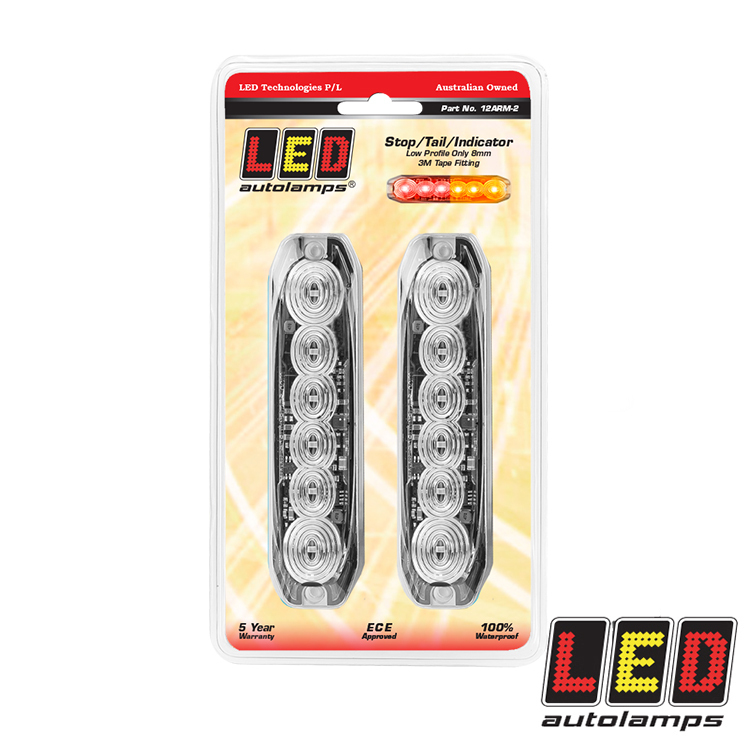

LED offer a peace of mind 5-year warranty and it is guaranteed to give you years of trouble-free service. The 12ARM-2 is supplied in a twin retail blister pack and they are available to order now.

Features / Specifications

  • 3M Tape/Screw Fitting
  • Low Profile Only 8mm
  • ECE Approved
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • 5 Year Warranty
  • 131mm x 30mm x 8mm




How to fit instructions

Surface mount these LED tail lights using 3M tape and/or screws supplied. Please refer to ADR 13/00 for mounting instructions.

Technical Drawings

12 series combination LED tail lights

Downloads

Data Sheet Download Link
