Base6 5 inch Rear View Monitor

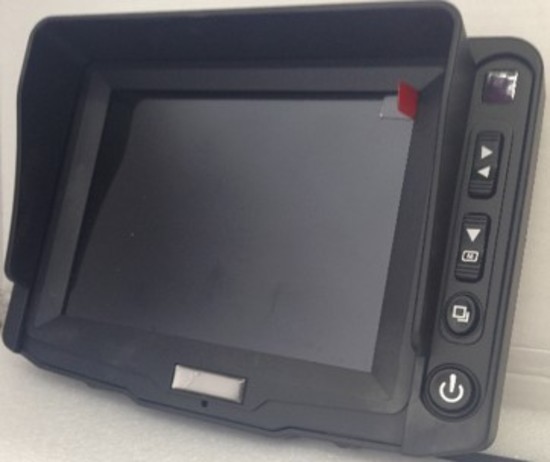

5"Digital Screen Rear View Monitor with Removable Sun Visor
Model
OZLCD5
OSD Menu Function
Separately Set Each Camera Mirror/Normal image
Separately Set Each Camera Reversing Image Delay Time 0-10"
Separately Set Each Camera Trigger Priority
Video Inputs
2 CH Video
Audio Inputs
2 CH Audio
Display Resolution
640RGB(H) X 480(V) dot
Color System
PAL/NTSC (AUTO)
Brightness (cd/m2)
300 (Automatically Adjust Brightness to Display by According Environment)
Contrast ratio
500:1
Load Dump
DC14+87V(Td400mS) 5pulses
Operating temperature
-20„ƒ to +70„ƒ
Storage temperature
-30„ƒ to +80„ƒ
Operating Voltage
DC9-32V

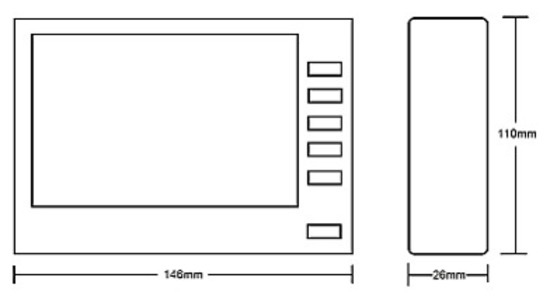

External dimensions
146mm W x 110mm H x 26mm D




Specifications

Brand

Base6

Voltage

10-32 VDC

Current Draw

0.5 A @ 12VDC

Inputs

PAL/AUTON443/N358

Speaker

NO

Mirror Function

YES

Warranty

3 Years

Downloads

Data Sheet Download Link
