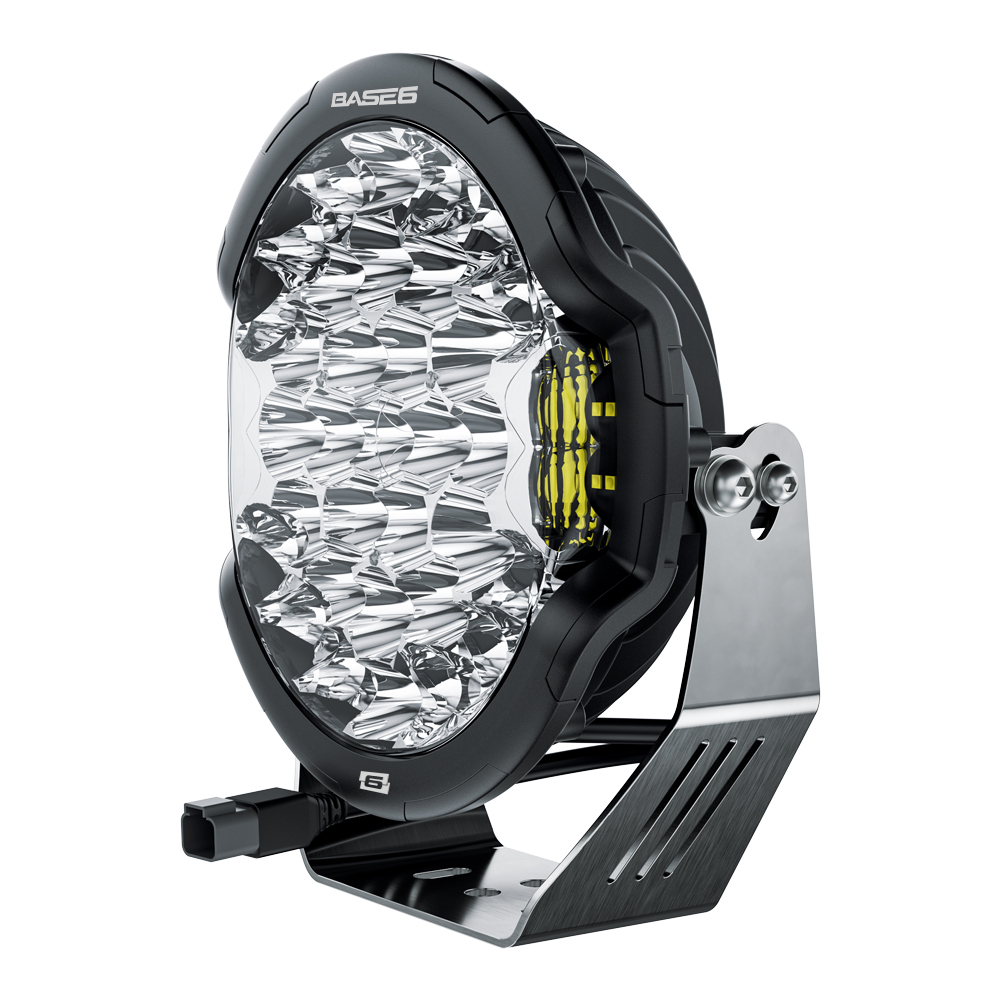

PAIR BASE6 Driving Lights, 9" Diameter, 205W, Combo c/w side shooter, 9-36VDC, IP68 / IP69K

FEATURES

• 5mm Bracket – Class-leading 5mm Stainless Steel bracket will stand up to huge punishment!
• Dust & Waterproof – IP69K. The LUX Series obtain the highest ingress certification available. 100% water and dust tight.
• Interference Free – CISPR 25 Class 3 Certified. The Icon’s won’t interfere with electronics such as your UHF/CB Radio or cellular devices.
• 5700 Kelvin – Less eye fatigue. The LUX Series 8.5" Driving Lights allow you to see obstacles and hazards with total clarity.

WHAT'S INCLUDED

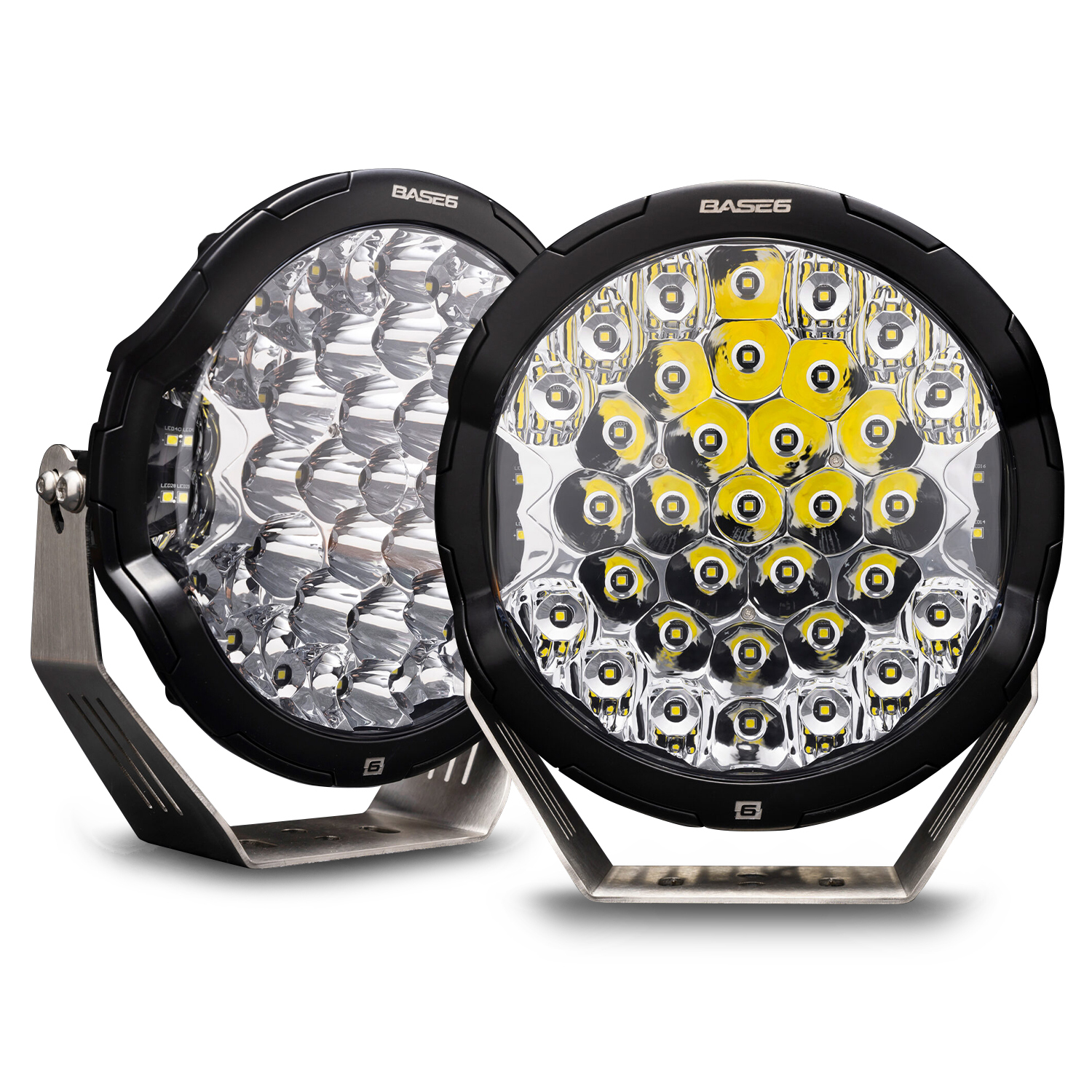

• Pair of BASE6 LUX LED Driving Lights
• Quik-Fit  Plug n Play Wiring Harness
• Wiring Harness. Complete with H4 & HB3 Connectors to High Beam
• Bolts, washers and nuts for the bracket base
• Wiring and Fitting Instructions

Specifications

• Voltage – 9-36V DC

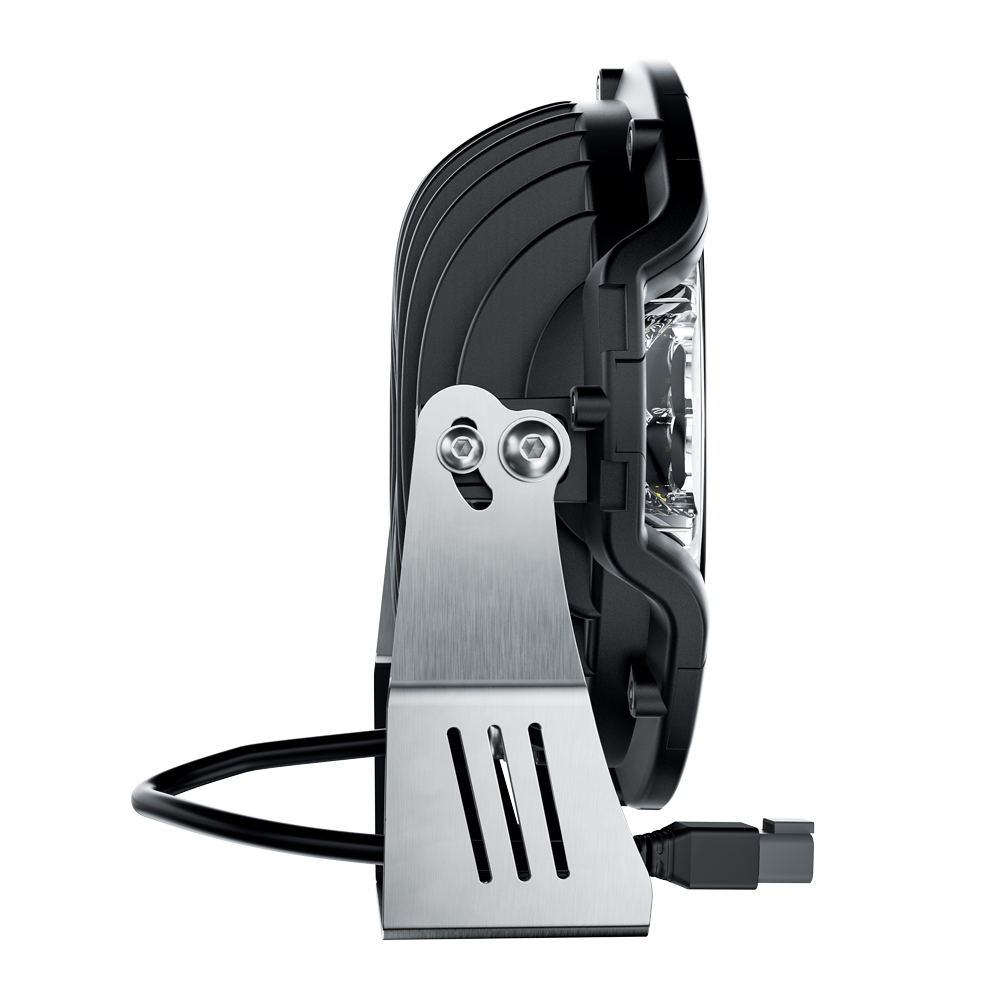

• Mounting – 5mm Brushed Stainless Steel Brackets – No Welds
• Warranty – LIFETIME Australian Replacement Warranty
• Power – 120w / 8.6A @ 12V DC
• Vibration – Vibration dampened and shockproof to 28G
• Diodes – Combination of ultra high output Oslon® and CREE® didoes
• Lumens – 29,232 Effective Lumens per pair

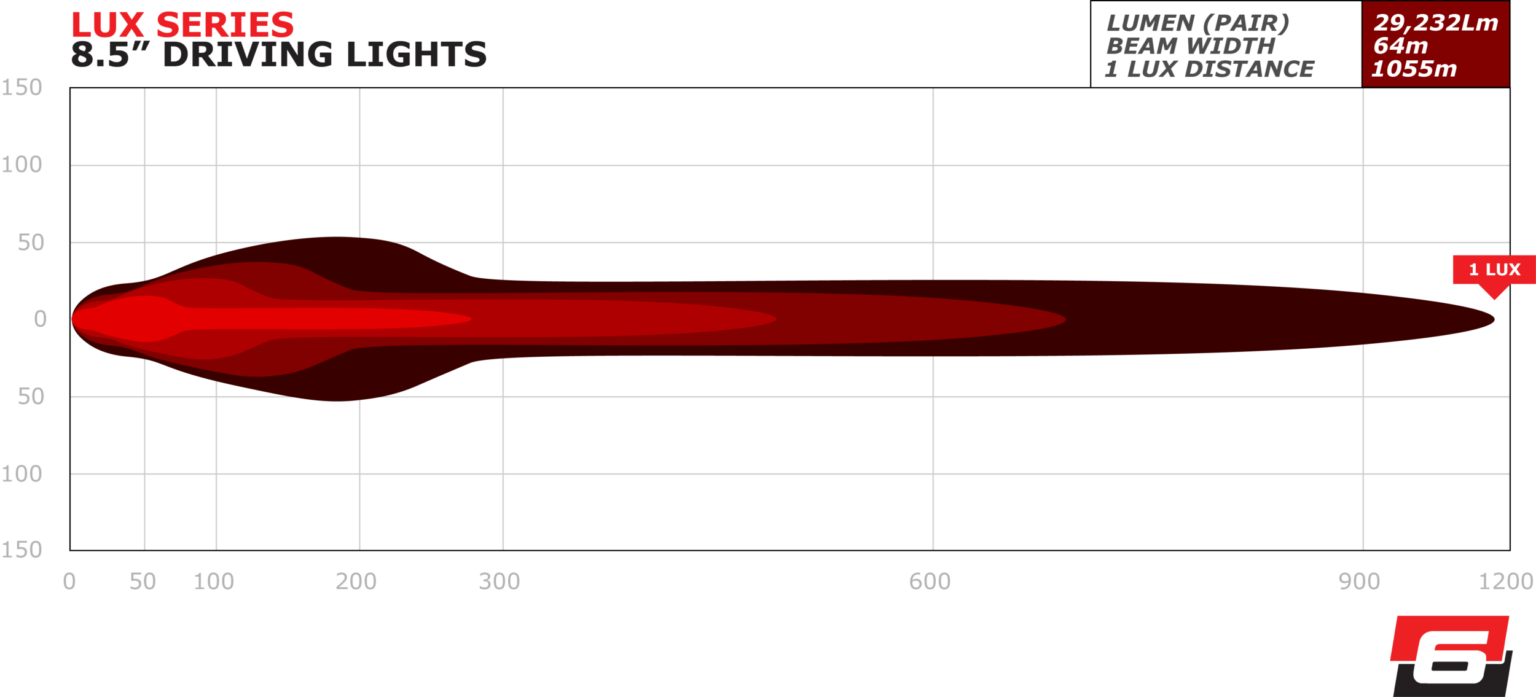

• Light Beam – 3.7-degree hyper spot beam
• Ingress – IP69K – Water Proof up to 3 meters
• Connections – Waterproof Deutsch® DT-P connector
• Wiring – Complete Plug ‘n’ Play Quik-Fit Harness with H4 & HB3 connectors
• Housing – Ultra high-pressure cast aluminium
• Weight – 3.25 Kilograms Each
• Interference – CISPR 25 Class 3

SKU	B6DL9CSSPR
Brand	Base6
