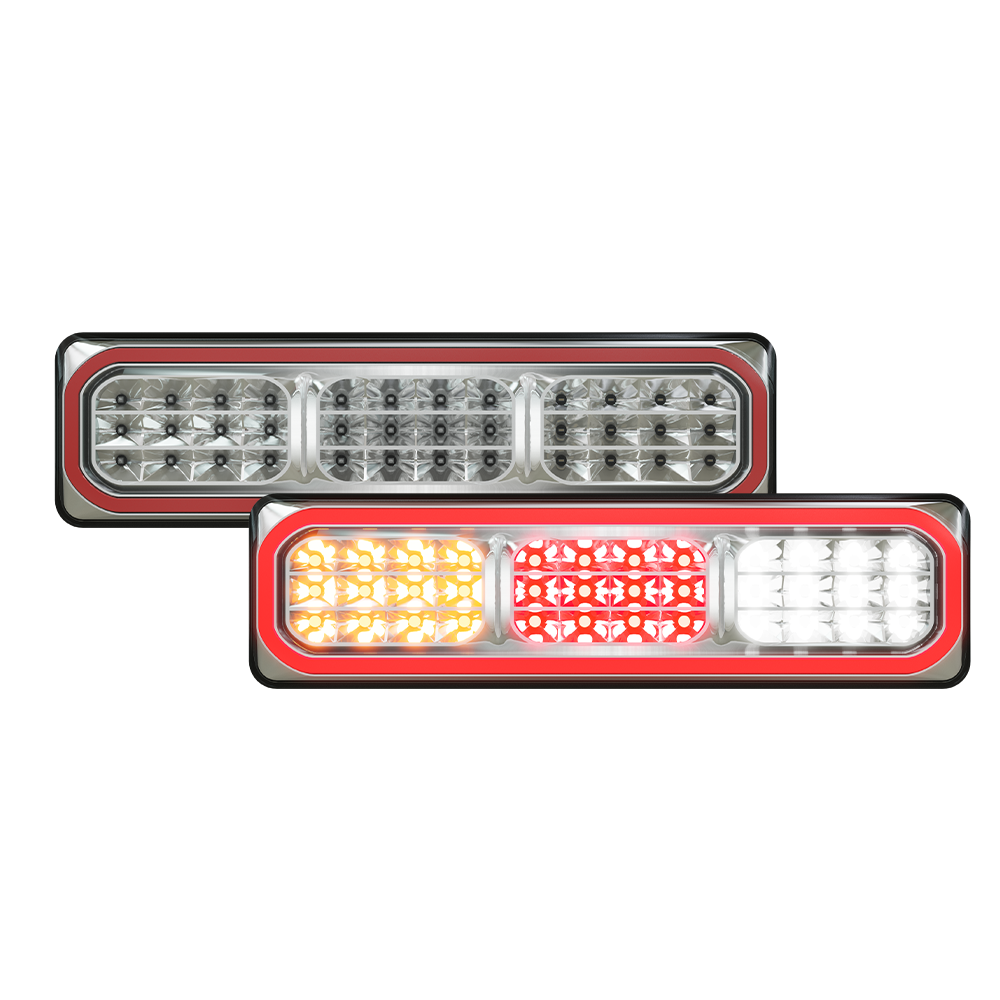

• Diffused Tail Function
• ECE Road Approved
• 12-24 Multivolt
• IP67 Rated
• 5 Year Warranty



Function Stop/Tail/Indicator/Reverse

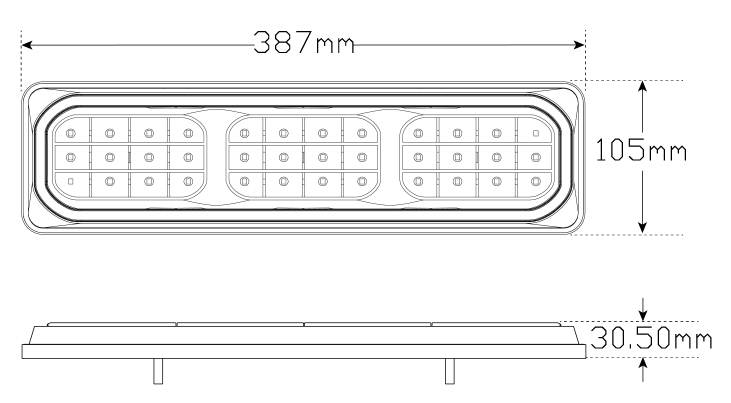

Size 387mm x 105mm x 30.5mm
Voltage 12-24 Multivolt
LED Qty 96
Cable 40cm
Lens PMMA
Base ABS
Draw Stop Tail Ind Rev
@13.8V 0.11A 0.39A 0.16A 0.20A
@28V 0.06A 0.20A 0.09A 0.10A
Approvals Function Approval No.
ECE Stop/Tail E9*7R02/27*23893*00
ECE Indicator E9*6R01/29*23893*00
ECE Reverse E9*23R00/22*23893*00



Fitting Instructions
Separate the base plate from the lamp and horizontally mount onto a flat
surface using screws provided, ensuring the arrow on the lens is pointing
outwards of the vehicle. Run wire through hole in fixing surface then re-align
the lamp and clip into the mounting base using light pressure to ensure it
sits in place correctly. Please refer to ADR 13/00 for mounting instructions.
