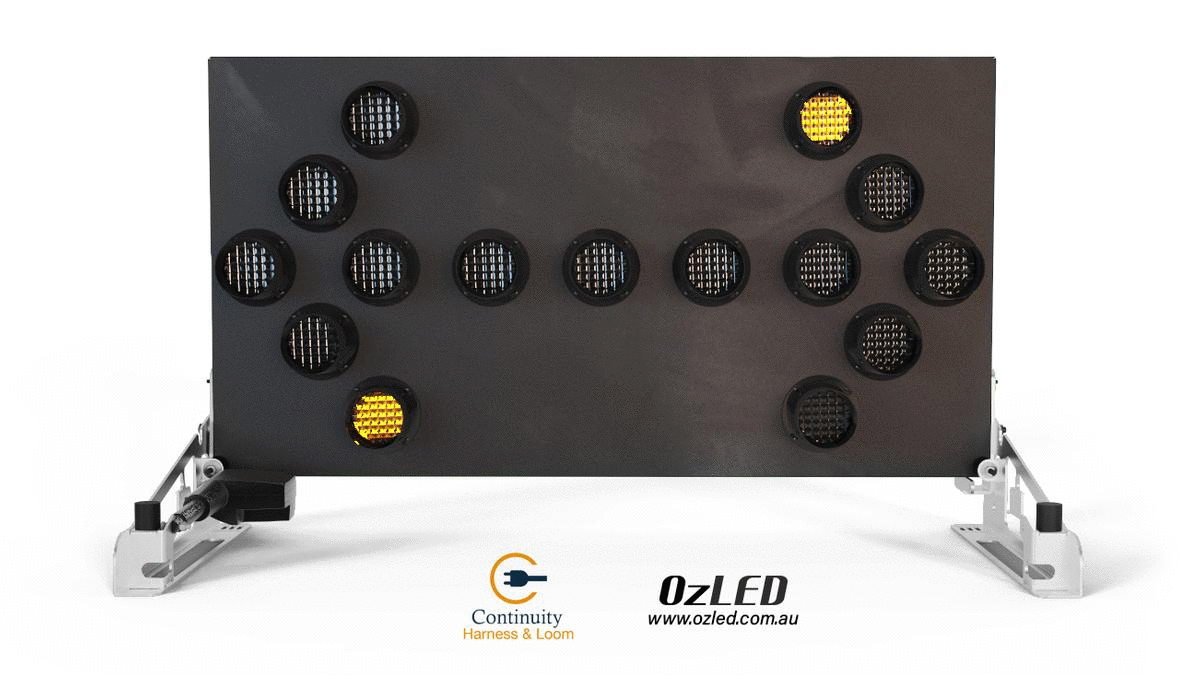

CLASS B LED Vehicle Arrow boards

Dont be caught out by cheap quality arrowboards on the market. OzLED is now stocking the Continuity vehicle-mounted arrow boards. These arrow boards are made to the highest quality standards on the market and are built locally right here in Brisbane. They allow for easy vehicle mounting with heavy duty brackets and electric actuators. Easily operated from within the cab with the included compact controller. All in all, with better quality and technology the Continuity arrow boards are simply the best option currently on the Australian market.



Built to meet Australian Standards and CE Standards, this range of car, truck and trailer arrow boards have a wider angularity and superior visibility when compared to other options on the market. The ideal solution for any Traffic Control requirement.

The Continuity arrow board panels also fold down automatically when not in use. This provides a safer position for transport with less wind resistance. Our arrow boards are available in single or double sided B-Class. The vehicle mounted arrow boards are run on 12 volt systems only. A 10amp reducer will be required for 24v systems.



Features

  • Large amber high output LED lamps provide excellent long range visibility - up to 900m
  • Easy to use in dash mounted controller
  • GPS Speed Sensor optional
  • Lamp options: 15 lamps or 30 lamp double sided
  • Energy efficient operation with low power dissipation
  • Single sided electronic actuator for raising and lowering from inside the cab
  • Powered by DC 12V
  • Supplied with brackets to mount optional side beacons
  • 5 year Lamp Warranty
  • 1 year Actuator Warranty
  • 2 year Electronics Warranty
  • 5 year Mechanical Warranty
  • Lamps and shrouds are easily replaced if necessary



  SINGLE SIDED DOUBLE SIDED

Number of lamps 15 30
Class 1 Amber Lighting
IP65 Waterproof Rating
Power 12v 12v
Hydraulic actuator included
Roof mount assembly included
Controller module included
Side Beacon Brackets Available (sold separately)
Overall weight 29kgs 32kgs

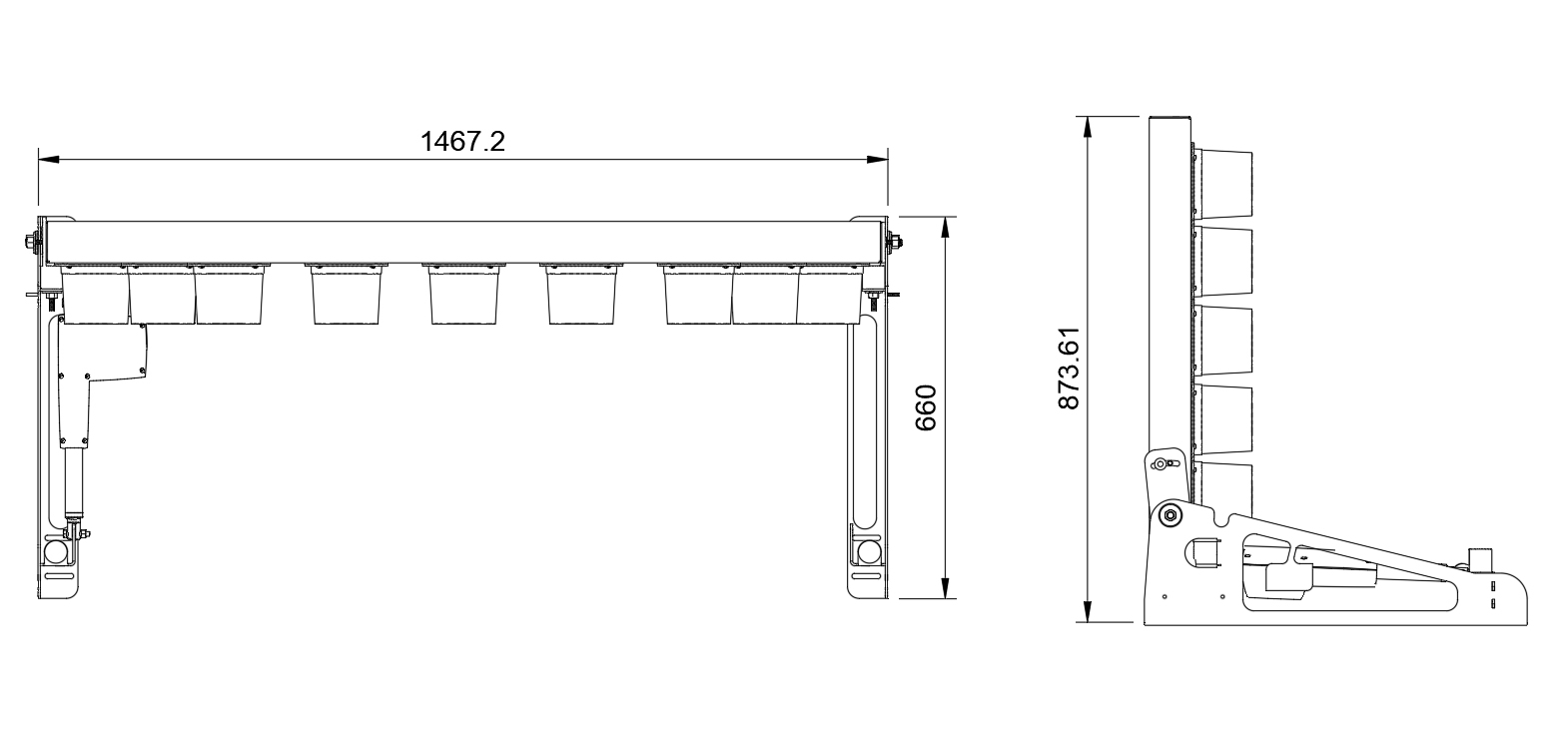

Board overall length 1440mm 1440mm
Board overall height 768mm 768mm

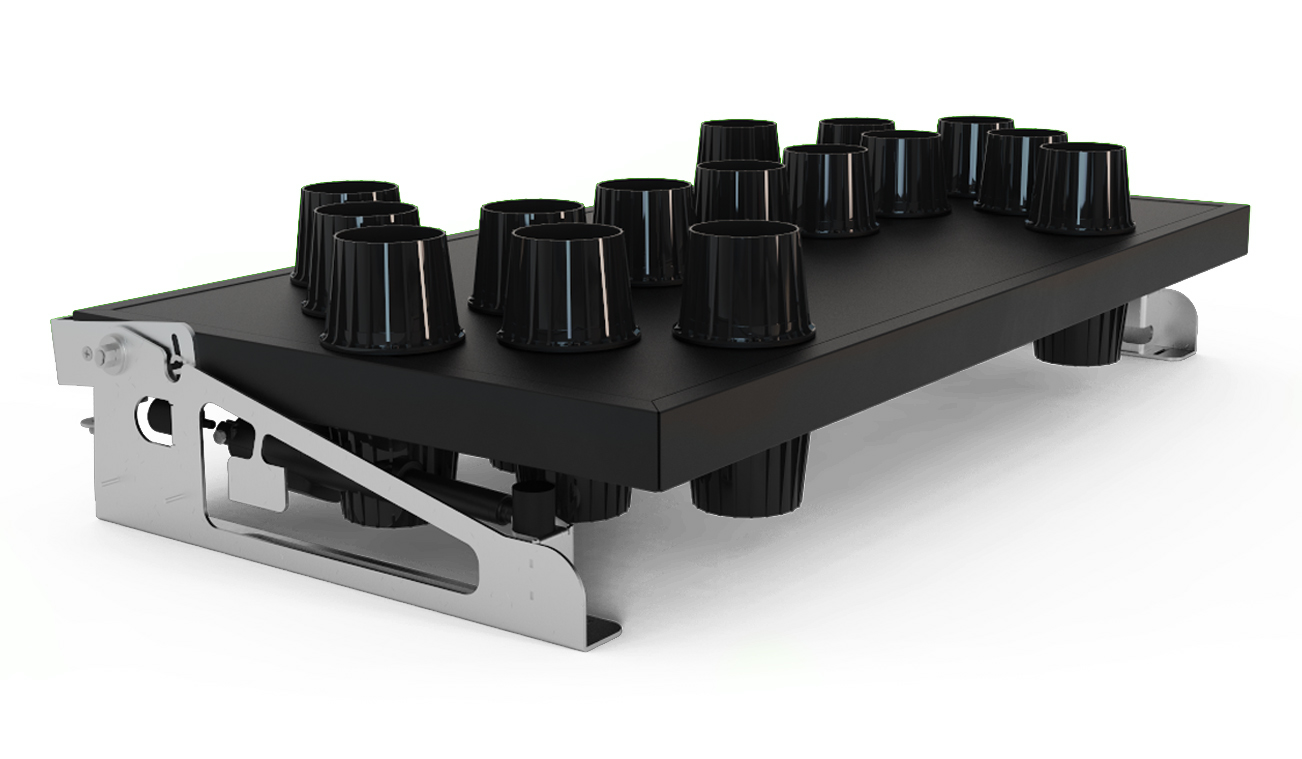

Overall height in folded travelling position 230mm 334mm
Overall height when raised 874mm 874mm
Black powder coat finish







Continuity Arrow Boards are quoted on a case by case requirement. If you have any sales enquirys regarding either the single side arrow boards or the double sided arrow board, please contact the OzLED Sales team today.
